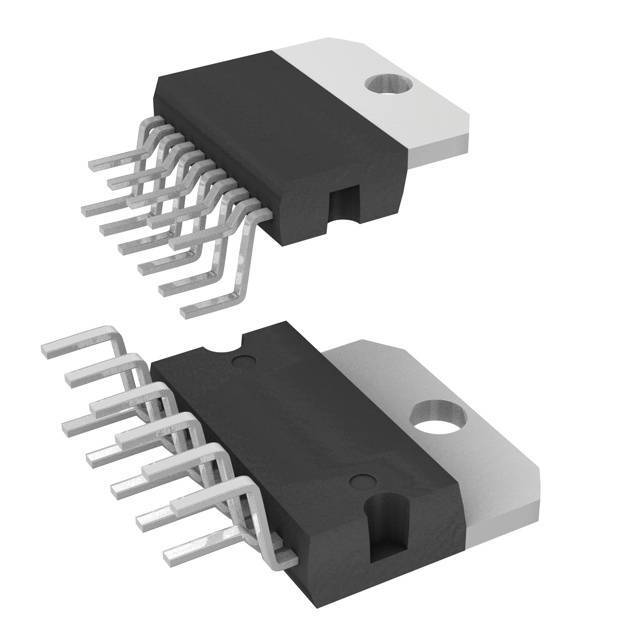

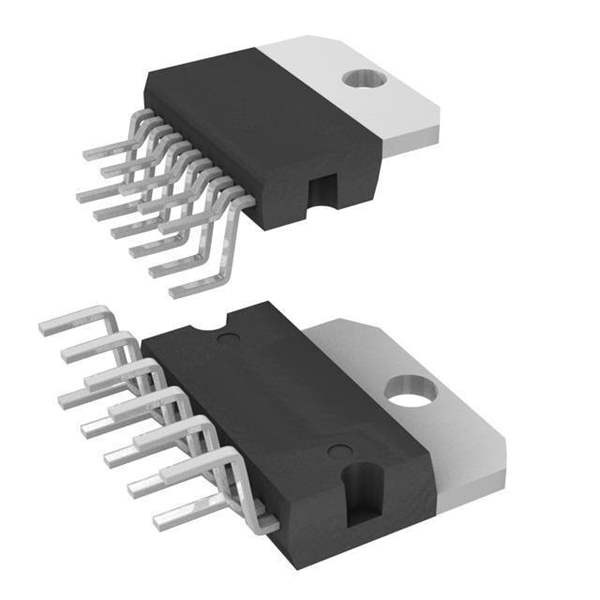

TDA2009A

Part No TDA2009A
Manufacturer STMicroelectronics
Catalog Linear - Amplifiers - Audio
Description IC AMP AUDIO 12.5W MULTIWATT11 / Audio Amp Speaker 2-CH Stereo 12.5W Class-AB 11-Pin(11+Tab) MULTIWATT V Tube
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Type Class AB
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 12.5W x 2 @ 4 Ohm
Supply Voltage - Operating 8 V to 28 V
Features Short-Circuit and Thermal Protection
Mounting Through Hole
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package 11-Multiwatt
Dimension Multiwatt-11 (Vertical, Bent and Staggered Leads)
Win Source Part Number 038225-TDA2009A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TDA2009
Introduction Date August 14, 1995
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TDA2009A CAD Model

Description

TDA2009A from STMicroelectronics is an audio amplifier IC in the Linear - Amplifiers - Audio category, commonly considered for consumer and embedded audio designs where compact amplification is needed. It may be evaluated for applications such as small speaker systems, TV or monitor audio stages, intercom equipment, educational projects, repair work, and other legacy analog audio circuits. Engineers often look at devices in this class when they need a proven, integration-friendly solution from a major semiconductor supplier. For new designs, the main value of TDA2009A is its positioning as a recognizable audio amplifier option from STMicroelectronics, especially in maintenance, replacement, and cost-sensitive designs that use established analog architectures. However, the lifecycle status for this part is information not available in the provided data, so procurement and design teams should confirm current manufacturer status before committing to production. RoHS compliance information is also not available here; engineers should verify the latest datasheet, manufacturer declarations, or authorized distributor compliance records before sourcing.
