Products specifications

Manufacturer STMicroelectronics
Packaging Tube
Part Status Obsolete (End Of Life)
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 120V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Maximum) at If 830mV at 20A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 275μA at 120V
Operating Temperature - Junction 150°C (Maximum)
Mounting Style Through Hole
Manufacturer Package TO-220-3
Supplier Device Package TO-220AB Narrow Leads
Part Number Series STPS40
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810290-STPS40SM120CTN
Ultra Librarian 3D Model Ultra Librarian STPS40SM120CTN CAD Model

Description

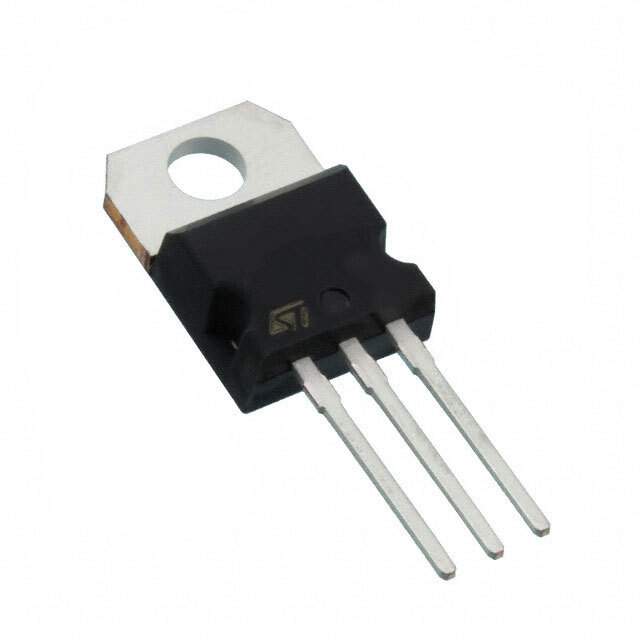

STPS40SM120CTN - STMicroelectronics Dual Schottky Rectifier

The STPS40SM120CTN from STMicroelectronics is a robust and efficient dual Schottky rectifier, designed to meet the needs of high-performance power conversion applications. This component is part of the STPS series, known for its low forward voltage drop and high surge capability, making it an ideal choice for a wide range of applications including switch-mode power supplies, converters, free-wheeling diodes, and reverse battery protection.

Key Features

  • High Junction Temperature: With a maximum operating junction temperature of 150°C, the STPS40SM120CTN can handle high thermal conditions, ensuring reliability and stability in demanding situations.
  • Low Forward Voltage Drop: The device exhibits a low forward voltage drop, which translates into reduced power loss and improved efficiency in your power conversion systems.
  • High Surge Current Capability: Its surge current capability ensures the rectifier can handle high current spikes without failure, providing robust performance during transient conditions.
  • Dual Center Tap Configuration: The dual diode arrangement with a common cathode in a center tap configuration allows for flexibility in designs, enabling the use of the device in both single and multiple output power supplies.
  • Power Package: Encased in an insulated TO-220AB package, the STPS40SM120CTN provides excellent thermal and electrical performance while maintaining a compact form factor.

Applications

The STPS40SM120CTN is suitable for a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • DC-DC converters
  • Automotive applications
  • Free-wheeling diodes in motor control circuits
  • Reverse battery protection

With its combination of high efficiency, reliability, and thermal performance, the STPS40SM120CTN is a versatile component that enhances the performance of your power management systems. Whether you're designing for industrial, automotive, or consumer electronics, this dual Schottky rectifier from STMicroelectronics is engineered to deliver top-notch performance where it matters most.
