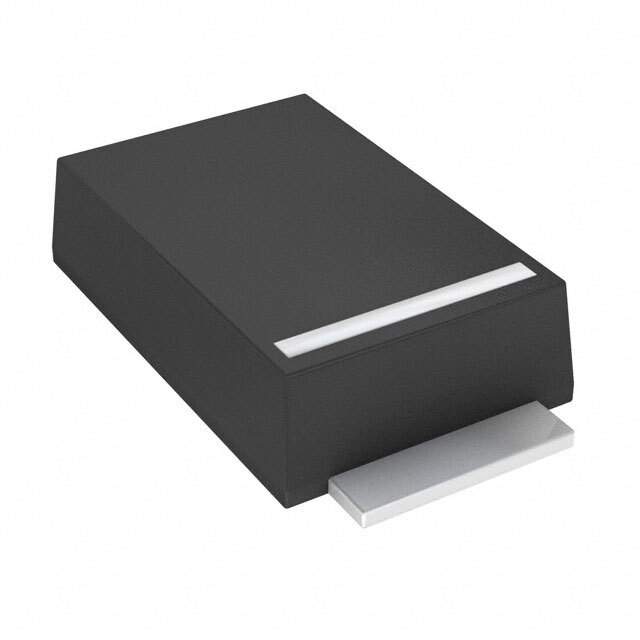

The STPS360AFY is a robust and high-performance Power Schottky Rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This component is engineered to meet the requirements of high-efficiency power supply applications, making it an ideal choice for a wide range of electronic devices.

Key Features

• Average Forward Current: The STPS360AFY delivers an average forward current of 3 A, ensuring reliable performance in demanding situations.
• Peak Repetitive Reverse Voltage: With a peak repetitive reverse voltage (VRRM) of 60 V, this rectifier is well-suited for low voltage operations while protecting circuits from voltage spikes.
• Low Forward Voltage Drop: The low forward voltage drop (VF) minimizes power loss and improves efficiency, which is crucial for energy-sensitive applications.
• High Junction Temperature: The component can operate at a high junction temperature (TJ) of up to 150°C, offering stability and reliability in high-temperature environments.
• Guard-Ring Protection: STPS360AFY incorporates guard-ring protection for enhanced ruggedness and long-term reliability, especially important in preventing over-voltage failures.

Applications

The STPS360AFY is versatile and can be used in a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• Adapters and on-board DC/DC converters
• Free-wheeling diodes in converters and motor control circuits
• Power Management Systems
• Reverse battery protection circuits

Package and Quality

This rectifier is housed in a fully molded TO-220FP package, which provides excellent thermal performance and is suitable for through-hole mounting. The package is designed for optimal heat dissipation, ensuring the device operates within its specified temperature range even under high current conditions.

STMicroelectronics is committed to delivering high-quality products. The STPS360AFY is manufactured with consistency, ensuring that each device meets the stringent requirements that customers expect from STMicroelectronics components.
