Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 920mV @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 6.5μA @ 150V
Operating Temperature - Junction 175°C (Max)
Mounting Through Hole
Case / Package TO-220AB
Win Source Part Number 092607-STPS30150CT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STPS30150CT CAD Model

Description

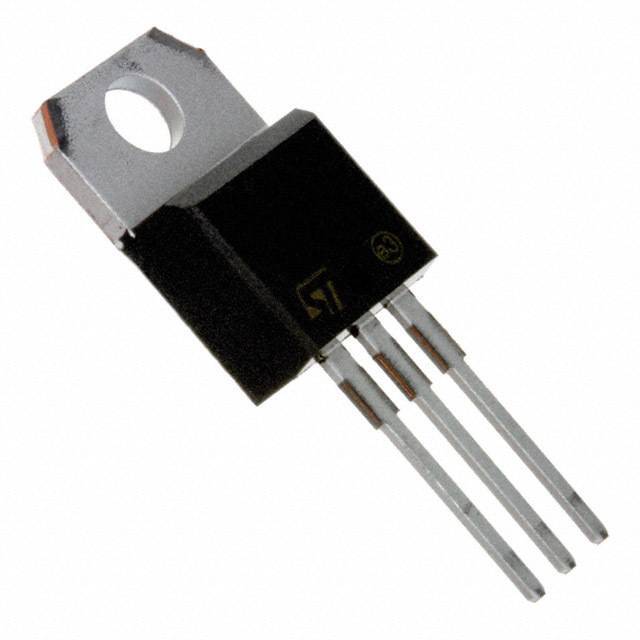

STPS30150CT Power Schottky Rectifier by STMicroelectronics

The STPS30150CT is a robust and efficient Power Schottky Rectifier designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This component is a state-of-the-art rectifier that is widely used in a variety of power management applications, particularly suited for switch-mode power supplies and high-frequency DC to DC converters.

Key Features

  • High Junction Temperature: With a maximum operating junction temperature of 175°C, the STPS30150CT is capable of sustaining high thermal conditions, making it suitable for high-reliability applications.
  • Low Forward Voltage Drop: Thanks to its Schottky barrier technology, this rectifier offers a low forward voltage drop which enhances the overall efficiency of the system by reducing thermal dissipation and improving conduction losses.
  • High Surge Capability: The device is capable of handling high surge currents without failure, ensuring reliability and robustness during transient conditions.
  • Dual Diode Configuration: The STPS30150CT comes in a TO-220AB package with a common cathode dual diode configuration, which allows for the use in parallel or series arrangements to suit different application needs.

Applications

The versatility of the STPS30150CT makes it an excellent choice for a wide range of applications, such as:

  • Switching power supplies (SMPS)
  • Power management systems
  • Free-wheeling diodes in motor control circuits
  • DC/DC converters
  • Automotive applications
  • Power factor correction circuits (PFC)

Electrical Characteristics

With a repetitive peak reverse voltage (VRRM) of 150V and an average forward current (IF(AV)) of 30A, the STPS30150CT is capable of handling significant power levels. The device also features a low leakage current and a fast switching response, further enhancing its performance in high-speed switching applications.

Engineered for optimal performance and reliability, the STPS30150CT from STMicroelectronics is a top choice for designers seeking an efficient and durable power rectifier solution.
