STPS2L40AFN - Power Schottky Rectifier from STMicroelectronics

The STPS2L40AFN is a robust power Schottky rectifier designed by STMicroelectronics, optimized for switch-mode power supply applications. This high-performance component is ideal for a wide range of uses, from power management solutions to high-frequency DC to DC converters. The STPS2L40AFN is a testament to STMicroelectronics' commitment to providing energy-efficient and reliable components for the electronics industry.

Featuring a low forward voltage drop, the STPS2L40AFN ensures reduced conduction losses, making it an energy-efficient choice for designers. This characteristic is particularly beneficial in applications where efficiency is paramount. The device operates with a repetitive peak reverse voltage (VRRM) of 40V, which allows it to handle typical voltage requirements in various circuits without the risk of breakdown.

With an average forward current (IF(AV)) of 2A, the STPS2L40AFN can comfortably manage moderate current levels, making it suitable for a range of mid-power applications. Its power package is designed to offer high thermal performance, ensuring reliability and longevity even under high operating temperatures. The device's junction temperature range extends from -40°C to 150°C, making it capable of performing in extreme environmental conditions.

The STPS2L40AFN also features a fast switching capability, which is critical for reducing switching losses in high-frequency operations. This makes it an excellent choice for applications where fast switching is necessary to maintain efficiency and performance. Additionally, its low leakage current helps to minimize power loss when the device is in the off state, further contributing to the overall efficiency of the system.

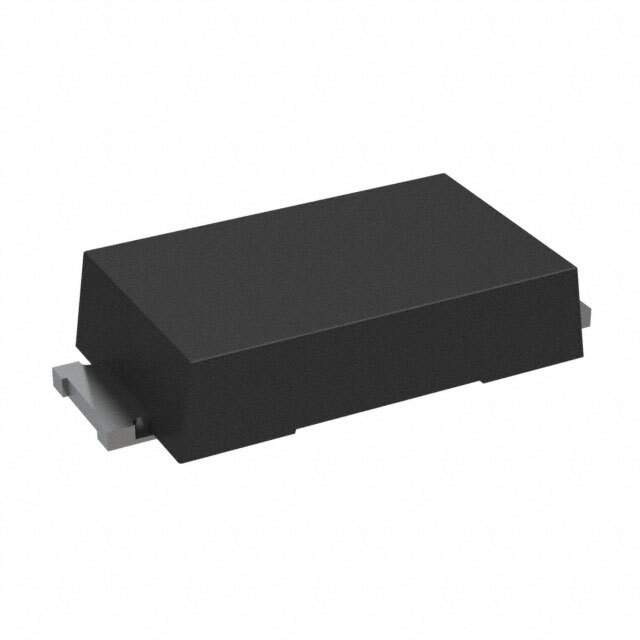

STMicroelectronics has packaged the STPS2L40AFN in a surface-mount SMBflat-3L package, which is not only space-saving but also compatible with automated assembly processes, reducing manufacturing costs and time. The package is lead-free and RoHS compliant, aligning with global environmental standards and regulations.

In summary, the STPS2L40AFN from STMicroelectronics is a high-efficiency power Schottky rectifier that offers low power loss, fast switching, and robust thermal performance, making it an ideal choice for modern power supply designs.
