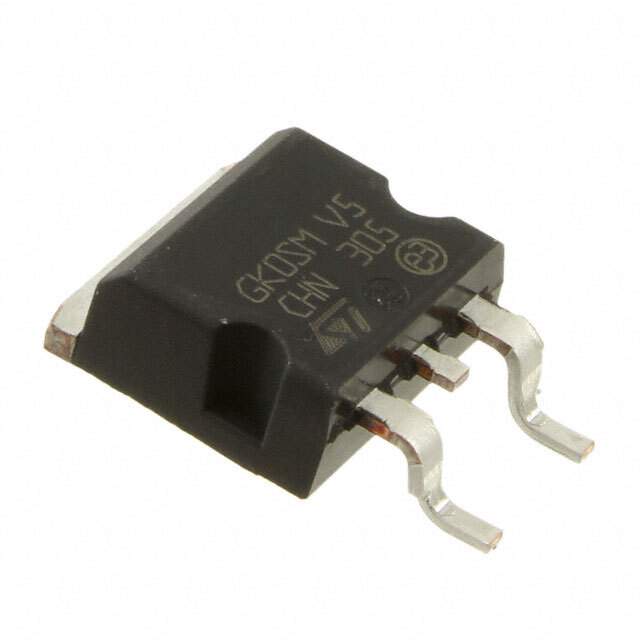

The STPS20150CG is a robust and high-performance Power Schottky Rectifier designed and manufactured by STMicroelectronics, a global semiconductor leader. This rectifier is specifically engineered to cater to a wide range of applications that require efficient power management and high reliability.

Key Features

• Voltage Rating: The device is characterized by a repetitive peak reverse voltage (V<sub>RRM) of 150V, making it suitable for high-voltage operations.
• Forward Current: It boasts a high average forward current (I<sub>F(AV)) of 20A, ensuring it can handle significant power in various applications.
• Low Power Loss: With its Schottky barrier technology, the STPS20150CG ensures low forward voltage drop (V<sub>F) and reduced power loss, enhancing overall efficiency.
• High Surge Capability: Its surge current capability is designed to withstand high surge events, providing reliable performance under stress.
• Package: The device comes in a TO-220AB package, which is known for its good thermal performance and ease of mounting on a PCB.
• Junction Temperature: It operates at a wide junction temperature range, from -40°C to 175°C, making it suitable for extreme environmental conditions.

Applications

The STPS20150CG is ideal for a variety of applications, including:

• Switching power supplies
• Converters
• Freewheeling diodes
• Reverse battery protection
• DC/DC converters
• Automotive applications

Reliability and Performance

STMicroelectronics ensures that the STPS20150CG meets rigorous standards for reliability and performance. Its robust construction and advanced manufacturing techniques make it a preferred choice for engineers and designers looking for a power rectifier that can deliver consistent performance over its lifespan.

Environmental Compliance

The STPS20150CG is also environmentally friendly, complying with RoHS and REACH regulations, which restricts the use of certain hazardous substances in electrical and electronic equipment, ensuring a lower environmental impact.
