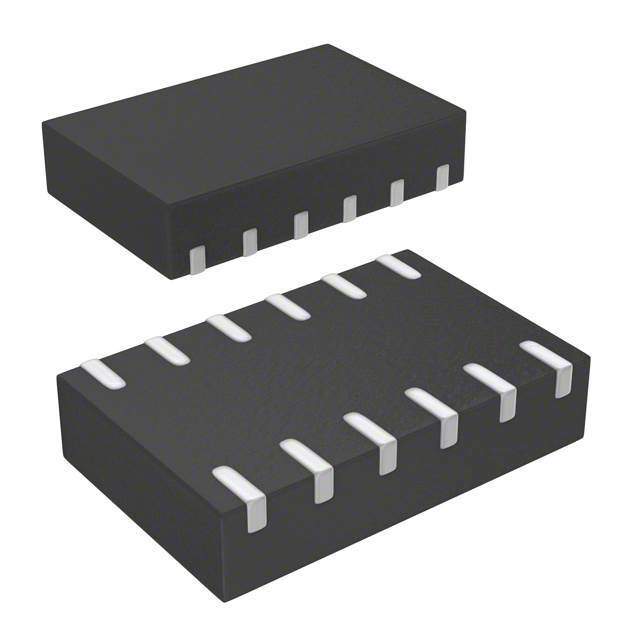

STM6601GU2BDM6F: Smart Reset Chip from STMicroelectronics

The STM6601GU2BDM6F is a sophisticated system reset IC developed by STMicroelectronics, designed to enhance the user experience by providing a smart reset function for electronic devices. This compact and efficient chip is ideal for a wide range of applications, including smartphones, tablets, and other portable electronics, where a controlled and reliable reset mechanism is crucial for maintaining system stability and performance.

Key Features

• Smart Reset Input: The STM6601GU2BDM6F features an innovative smart reset input, which enables the device to initiate a system reset only after a predefined input condition is met, such as pressing and holding the reset button for a specific duration. This prevents accidental resets and ensures that the reset process is intentional and user-initiated.
• Dual Reset Inputs: Equipped with two reset inputs, this chip offers versatility in reset configurations, allowing for different reset conditions or sequences to be implemented based on the system's requirements.
• Adjustable Reset Delay: The reset delay time is programmable, giving designers the flexibility to set the appropriate delay for their system's needs. This feature is crucial in preventing unintentional resets due to brief glitches or transients.
• Low Power Consumption: As with many STMicroelectronics products, the STM6601GU2BDM6F is designed with power efficiency in mind. It operates with very low quiescent current, making it suitable for battery-powered applications where power conservation is a priority.
• High Reliability: The device is built to ensure high reliability and robustness, with built-in features to protect against electrostatic discharge (ESD) and latch-up events.

Applications

The STM6601GU2BDM6F is a versatile component that can be used in various electronic devices requiring a reliable reset mechanism. Its applications extend to:

• Portable consumer electronics
• Smartphones and tablets
• Wearable technology
• Handheld gaming devices
• Personal digital assistants (PDAs)

By integrating the STM6601GU2BDM6F into their designs, manufacturers can ensure that their devices offer users a stable and reliable experience, with reduced risk of data loss or corruption due to unintended resets. STMicroelectronics' commitment to quality and innovation is reflected in this chip, making it an excellent choice for modern electronic systems.
