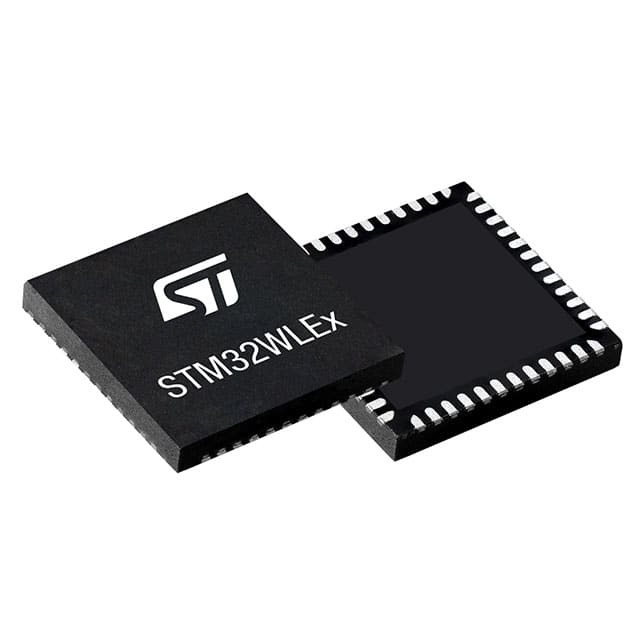

STM32WLE5CCU6

Part No STM32WLE5CCU6
Manufacturer STMicroelectronics
Catalog RF Transceiver ICs
Description MULTIPROTOCOL LPWAN 32-BIT ARM C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr STMicroelectronics
Package Tray
Product Status Active
Programmable Not Verified
Type TxRx + MCU
RF Family/Standard 802.15.4
Protocol LoRaWAN 1.0, Sigfox
Modulation BPSK, GFSK, GMSK, FSK, MSK
Frequency 150MHz ~ 960MHz
Data Rate (Max) 300kbps
Power - Output 22dBm
Sensitivity -148dBm
Memory Size 256kB Flash
Serial Interfaces ADC, GPIO, I²C, SPI, IrDA, UART, USART
GPIO 29
Voltage - Supply 1.8V ~ 3.6V
Current - Receiving 4.82mA
Current - Transmitting 21mA ~ 120mA
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 48-UFQFN Exposed Pad
Supplier Device Package 48-UFQFPN (7x7)
Base Product Number STM32
Standard Package 260 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 851399-STM32WLE5CCU6
Ultra Librarian 3D Model Ultra Librarian STM32WLE5CCU6 CAD Model

Description

Introducing the STM32WLE5CCU6 from STMicroelectronics

The STM32WLE5CCU6 is a cutting-edge microcontroller product brought to you by STMicroelectronics, a global leader in semiconductor solutions. This innovative device is part of the STM32WL series, which is the first to integrate both a sub-GHz radio and an Arm Cortex-M core on the same chip. The STM32WLE5CCU6 is designed to cater to a wide range of applications, particularly those that require long-range wireless connectivity, such as IoT devices, smart city infrastructure, industrial automation, and energy management systems.

At the heart of the STM32WLE5CCU6 is a 32-bit Arm Cortex-M4 CPU with a frequency of up to 48 MHz, providing ample computational power for complex tasks. It is complemented by an Arm Cortex-M0+ co-processor dedicated to managing the radio functions, ensuring efficient wireless communication. This dual-core architecture enables the device to perform application processing and wireless connectivity tasks concurrently, optimizing performance and power consumption.

The integrated radio supports multiple modulation schemes, including LoRa, (G)FSK, (G)MSK, and BPSK, providing excellent flexibility for developers to choose the best communication protocol for their specific needs. The device's sub-GHz radio frequency range ensures long-range transmission capabilities, which is essential for remote monitoring and control applications. Additionally, the STM32WLE5CCU6 boasts a comprehensive set of peripherals, including multiple SPI/I2C/UART interfaces, ADCs, timers, and more, enabling a wide variety of external components to be connected and controlled with ease.

Security is also a top priority for the STM32WLE5CCU6, featuring hardware-based AES encryption to safeguard data transmission. With the growing concerns around IoT security, this feature provides an additional layer of protection against potential threats.

Developers will appreciate the support for STMicroelectronics' comprehensive software development ecosystem, which includes the STM32Cube software suite and a range of development tools to streamline the design process. The STM32WLE5CCU6 is available in a UFBGA73 package, offering a compact footprint for space-constrained applications.

In summary, the STM32WLE5CCU6 from STMicroelectronics is a powerful, versatile, and secure microcontroller that is ideal for a wide range of wireless applications. Its integration of an Arm Cortex-M core with a sub-GHz radio makes it a smart choice for developers looking to create innovative and efficient IoT solutions.
