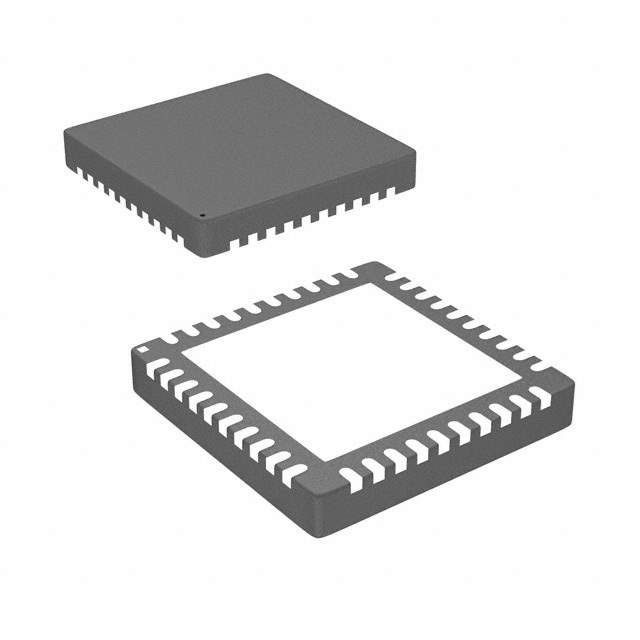

MC33696FCAE Real Image
Same model may have multiple batches, images only for reference.

MC33696FCAE

Part No MC33696FCAE
Manufacturer Freescale Semiconductor - NXP
Catalog RF Transceiver ICs
Description IC RF TXRX ISM
Datasheet
MC33696FCAE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Type TxRx Only
RF Family/Standard General ISM
Modulation FSK, OOK
Frequency 290MHz to 340MHz, 424MHz to 510MHz, 862MHz to 1.02GHz
Data Rate (Max) 22.6kbps
Power - Output 7.25dBm
Sensitivity -106.5dBm
Serial Interfaces SPI
Supply Voltage - Operating 2.1 V to 3.6 V
Current - Receiving 10.3mA to 24mA
Current - Transmitting 6.1mA to 13.5mA
Temperature Range - Operating -20°C to 85°C
Dimension 32-VFQFN Exposed Pad
Win Source Part Number 144313-MC33696FCAE
Ultra Librarian 3D Model Ultra Librarian MC33696FCAE CAD Model

Description

The NXP MC33696FCAE is a TxRx Only type electronic component that operates at a frequency range of 290MHz to 340MHz, 424MHz to 510MHz, and 862MHz to 1.02GHz.

  • Type: TxRx Only
  • Frequency Range: 290MHz to 340MHz, 424MHz to 510MHz, and 862MHz to 1.02GHz
  • Family/Standard: General ISM RF
  • Modulation: FSK and OOK
  • Sensitivity: -106.5dBm
  • Data Rate: 22.6kbps
  • Power Output: 7.25dBm
  • Current (Transmitting): 6.1mA to 13.5mA
  • Current (Receiving): 10.3mA to 24mA
  • Packaging: 32-VFQFN Exposed Pad
  • Operating Temperature: -20°C to 85°C
  • Serial Interfaces: SPI
  • Supply Voltage: 2.1V to 3.6V
  • Status: Obsolete (EOL)
