Same model may have multiple batches, images only for reference.

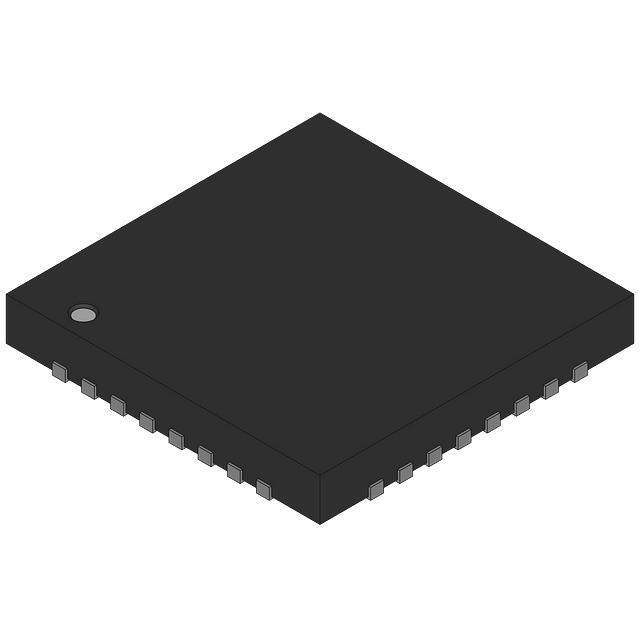

MC13201FCR2 Real Image
Same model may have multiple batches, images only for reference.

MC13201FCR2

Part No MC13201FCR2
Manufacturer Freescale Semiconductor - NXP
Catalog RF Transceiver ICs
Description IC RF TXRX 802.15.4/ISM 32-VFQFN
Datasheet
MC13201FCR2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Not For New Designs
Type TxRx Only
RF Family/Standard 802.15.4, General ISM > 1GHz
Modulation DSSS, O-QPSK
Frequency 2.4GHz
Data Rate (Max) 250kbps
Power - Output 4dBm
Sensitivity -91dBm
Serial Interfaces SPI
GPIO 7
Supply Voltage - Operating 2 V to 3.4 V
Current - Receiving 37mA
Current - Transmitting 30mA
Temperature Range - Operating -40°C to 85°C
Dimension 32-VFQFN Exposed Pad
Win Source Part Number 022542-MC13201FCR2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MC13201FCR2 CAD Model

Description

This component has a unique part number of 022542-MC13201FCR2 and is designed for RF/IF and RFID applications.

  • Frequency: 2.4GHz
  • Data Rate: Up to 250kbps
  • Sensitivity: -91dBm
  • Power Output: 4dBm
  • Current Consumption (Receiving): 37mA
  • Current Consumption (Transmitting): 30mA
  • Suitability: Not suitable for new designs
  • Temperature Range: -40°C to 85°C
