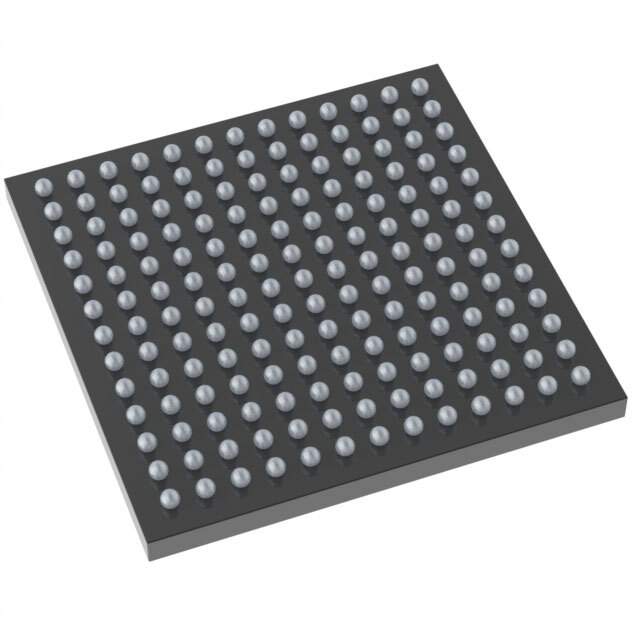

STM32H747AII6 Microcontroller Overview

The STM32H747AII6 is a state-of-the-art microcontroller product from STMicroelectronics, designed to deliver high-performance and power efficiency for demanding applications. This advanced microcontroller is built on a dual-core architecture, featuring an ARM® Cortex®-M7 core and a Cortex®-M4 core, both capable of running at up to 480 MHz and 240 MHz respectively, which enables it to handle complex tasks with ease.

The STM32H747AII6 is part of the STM32H7 series, which is renowned for its high processing power and rich set of peripherals. It is particularly suitable for applications in industrial control, consumer electronics, Internet of Things (IoT), and medical devices, where both high computational performance and real-time responsiveness are required.

Key Features

• Dual-Core Flexibility: The integration of two cores allows for the efficient division of tasks between high-performance processing and real-time operations.
• Advanced Connectivity: This microcontroller includes a comprehensive set of communication features such as multiple I2C, SPI, USART interfaces, USB OTG, and Ethernet for versatile connectivity options.
• Rich Graphics Support: With its Chrom-ART Accelerator™, the STM32H747AII6 is capable of delivering advanced graphics capabilities, making it ideal for user interfaces with rich visuals.
• Ample Memory: It comes with a large set of embedded memories including 2MB of Flash memory and 1MB of RAM, providing ample space for complex applications.
• Robust Security: Security features such as hardware cryptographic acceleration and a secure boot process ensure the protection of sensitive data and the integrity of firmware.

Furthermore, the STM32H747AII6 supports a wide range of development tools and software libraries, including the STM32Cube ecosystem, which provides comprehensive software HAL libraries, middleware solutions, and examples to accelerate development. Additionally, with its flexible power control system and multiple power-saving modes, this microcontroller can also meet the requirements of low-power applications.

Overall, the STM32H747AII6 represents a powerful and flexible solution for sophisticated and feature-rich applications, offering designers a balance between performance and power consumption, along with a rich peripheral set to cater to a wide variety of design requirements.
