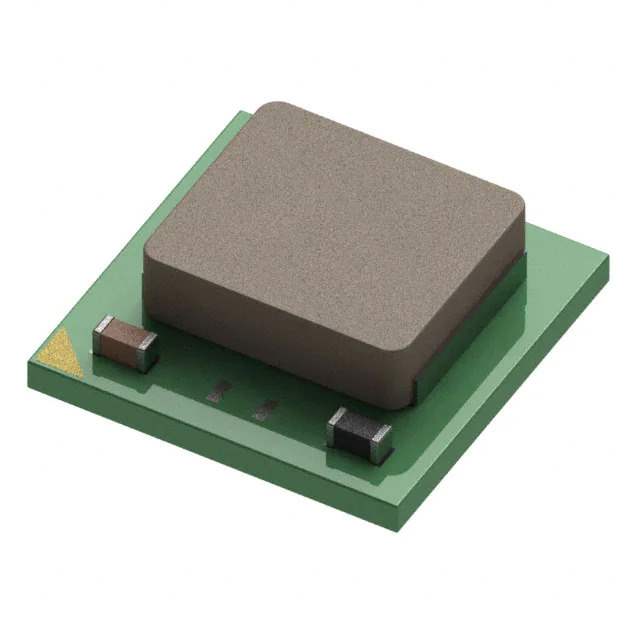

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Delta Electronics
Package Tape & Reel
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 16V
Voltage - Output 1 0.6 ~ 5V
Current - Output (Max) 3A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting Type Surface Mount
Package / Case 8-LQFN Exposed Pad, Module
Size / Dimension 0.14" L x 0.14" W x 0.07" H (3.5mm x 3.5mm x 1.7mm)
Supplier Device Package 8-QFN (3.5x3.5)
Base Product Number MUN12AD03
Standard Package 1,000 pcs
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 848992-MUN12AD03-SH
Ultra Librarian 3D Model Ultra Librarian MUN12AD03-SH CAD Model

Description

The MUN12AD03 is a non-isolated PoL (Point of Load) module with a size of 0.14" L x 0.14" W x 0.07" H. It has a single output with a maximum output current of 3A.

  • Output Current (Max): 3A
  • Input Voltage: 4.5V to 16V
  • Features: Remote on/off, OCP (Over Current Protection), OTP (Over Temperature Protection), and UVLO (Under Voltage Lockout)
  • Efficiency: 91%
  • Mounting: Surface mountable
  • Package: 8-LQFN exposed pad
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: Delta Electronics
  • Product Status: Active
