Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F1
Package Tape & Reel (TR)
Core Processor ARM® Cortex®-M3
Core Size 32-Bit Single-Core
Speed 36MHz
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Peripherals DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT
Number of I/O 51
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
RAM Size 80K x 8
Supply Voltage - Operating 2V ~ 3.6V
Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 64-LQFP
Supplier Device Package 64-LQFP (10x10)
Base Product Number STM32F101
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1263052-STM32F101RGT6TR
Ultra Librarian 3D Model Ultra Librarian STM32F101RGT6TR CAD Model

Description

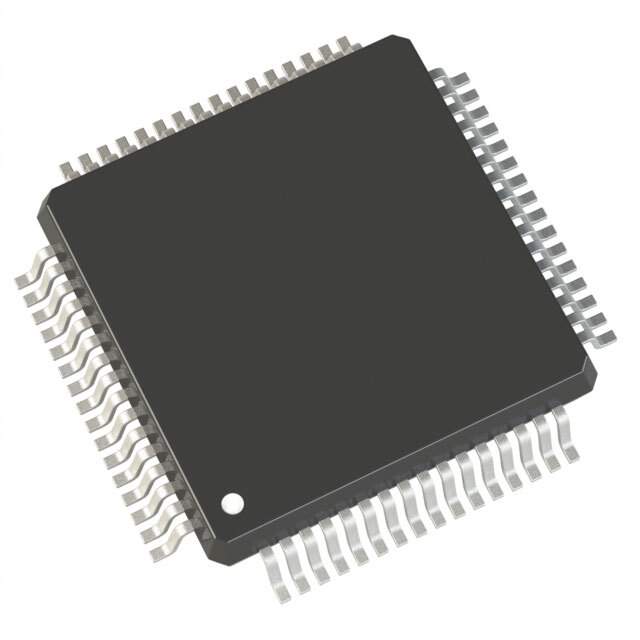

STM32F101RGT6TR Microcontroller - STMicroelectronics

The STM32F101RGT6TR is a high-performance ARM Cortex-M3 based microcontroller from STMicroelectronics, tailored for a wide range of applications. This microcontroller is part of the STM32F1 series, which is renowned for its balanced combination of power efficiency and processing capability, making it an ideal choice for industrial control, medical equipment, and consumer electronics.

With a maximum CPU frequency of 36 MHz, the STM32F101RGT6TR provides the computational power necessary for complex tasks while maintaining low power consumption. The device features a robust set of peripherals, including multiple timers, communication interfaces such as I2C, SPI, and USART, and a 12-bit analog-to-digital converter (ADC) with up to 16 channels, allowing for precise sensor readings and data acquisition.

This microcontroller comes with a 64 KB flash memory and 10 KB of RAM, providing sufficient space for application code and data storage. Moreover, its 64-pin LQFP (Low-profile Quad Flat Package) ensures a compact footprint while offering ample I/O ports for interfacing with other components in a system.

The STM32F101RGT6TR also features an extensive range of built-in safety features, such as a watchdog timer to ensure system reliability, and a brown-out reset to protect the device during unexpected power drops. The microcontroller operates within a temperature range of -40°C to 85°C, ensuring reliable performance under various environmental conditions.

STMicroelectronics provides comprehensive software support for the STM32F101RGT6TR, including the STM32Cube software development kit, which includes HAL (Hardware Abstraction Layer) libraries, middleware solutions, and example projects to accelerate development. Additionally, the microcontroller is supported by a wide range of development tools, including integrated development environments (IDEs) and debugging tools, making it a flexible and accessible choice for both professional engineers and hobbyists.

In summary, the STM32F101RGT6TR offers an excellent balance of performance, power consumption, and peripheral integration, making it a versatile microcontroller for a wide array of applications.
