The STM32F100ZDT6B is a high-performance microcontroller unit (MCU) from STMicroelectronics, designed to offer an optimal balance between processing power, reduced power consumption, and advanced peripheral integration. This MCU is part of the STM32F1 Value Line series, which is renowned for its exceptional value and performance in a wide range of applications.
Key Features
- Core: ARM Cortex-M3 32-bit RISC core operating at a frequency of up to 24 MHz.
- Memory: Equipped with 384 KB of Flash memory and 24 KB of SRAM, suitable for complex applications and secure data storage.
- Connectivity: Offers a range of communication interfaces including USART, SPI, I2C, and CAN, enabling easy integration with peripheral devices and other microcontrollers.
- Timers: Multiple 16-bit timers, including PWM channels, as well as watchdog and system timers, provide versatile timing and control options.
- Analog: Features an advanced 12-bit ADC with up to 16 channels, ensuring precise analog signal measurement and conversion.
- Debugging: Integrated debugging and programming capabilities via SWD (Serial Wire Debug) and JTAG interfaces, facilitating efficient development and troubleshooting.
- Power Efficiency: Supports multiple power-saving modes, including Stop and Standby, to optimize energy consumption for battery-powered and energy-sensitive applications.

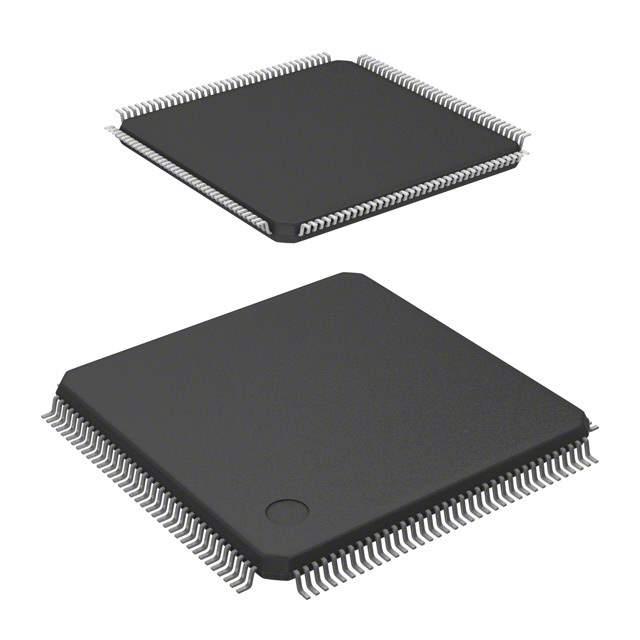

- Package: Available in a 144-pin LQFP package, providing ample I/O ports for extensive functionality.
- Operating Conditions: Designed to operate within a -40°C to +85°C temperature range, ensuring reliability across diverse environmental conditions.
Applications
The STM32F100ZDT6B MCU is ideal for a variety of applications where cost-effectiveness and performance are key considerations. These applications include industrial control systems, consumer electronics, home automation, medical devices, and automotive electronics. With its robust feature set and development ecosystem, the STM32F100ZDT6B provides a flexible platform for designers to innovate and optimize their product designs.
