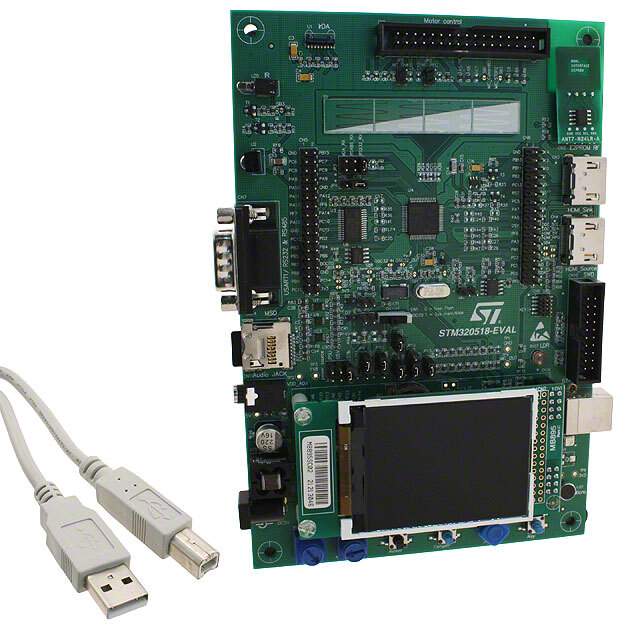

The STM320518-EVAL is a comprehensive evaluation platform designed by STMicroelectronics for the STM32F051x8 microcontrollers, which belong to the STM32F0 Series. This series is known for its ARM Cortex-M0 core, combining high performance, real-time capabilities, digital signal processing, and low-power, low-voltage operation, making it ideal for a wide range of applications.

This evaluation board is a versatile tool that allows developers to explore all the features of the STM32F051x8 microcontrollers. It includes an embedded ST-LINK/V2 for programming and debugging, as well as a range of hardware features that enable the user to fully evaluate the capabilities of the microcontroller.

Key Features:

• STM32F051R8T6 microcontroller with 64 KB of Flash memory and 8 KB of RAM in an LQFP64 package
• On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
• Board power supply: through USB bus or from an external 5 V supply voltage
• External application power supply: 3 V and 5 V
• LCD with 24 segments x 4 commons
• Four LEDs: LD1 (red/green) for USB communication, LD2 (red) for 3.3 V power on, two user LEDs: LD3 (green), LD4 (blue)
• Two push-buttons (user and reset)
• LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
• MP45DT02 ST MEMS audio sensor omni-directional digital microphone
• CS43L22 audio DAC with integrated class D speaker driver
• Eight LEDs: LD1 (red/green) for USB communication, LD2 (red) for 3.3 V power on, four user LEDs: LD3 (orange), LD4 (green), LD5 (red), LD6 (blue) and two USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current
• Two push-buttons: USER and RESET

With its rich set of peripherals, the STM320518-EVAL is ideal for evaluating the integrated features of the STM32F051x8 and developing applications such as motor drives, printers, 3D printers, alarm systems, video intercoms, HVAC, and smart energy equipment.

Developers can leverage the comprehensive software HAL library together with various packaged software examples, as well as direct access to the ARM mbed online resources at mbed.org.
