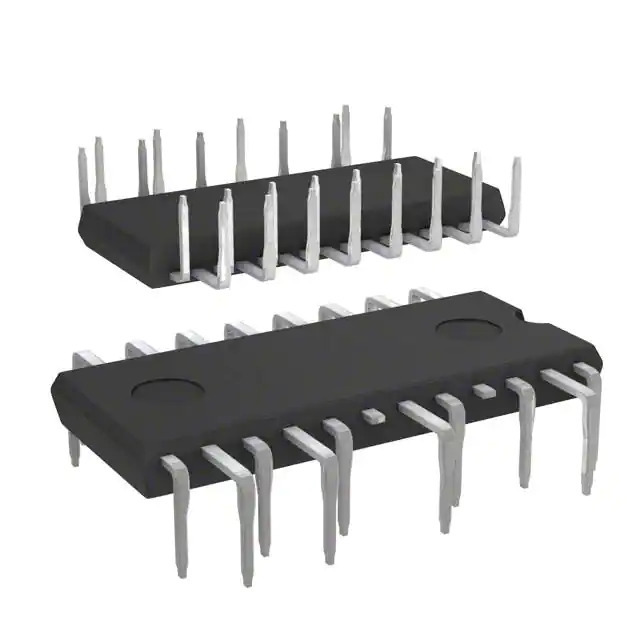

STIPN1M50-H - High Efficiency Integrated Power Module

The STIPN1M50-H is a sophisticated power module developed by STMicroelectronics, designed to deliver high efficiency and reliability in power management applications. This integrated module is part of ST's SLLIMM™ (Small Low-Loss Intelligent Molded Module) family, featuring an advanced design that combines IGBTs (Insulated Gate Bipolar Transistors), diodes, and a variety of other passive components into a single, compact package.

With a breakdown voltage of 500V and a nominal current rating of 1A, the STIPN1M50-H is engineered to meet the rigorous demands of high-performance power systems. The module's optimized layout ensures minimal power loss and superior thermal performance, making it an ideal choice for applications such as motor drives, power supplies, and any system requiring efficient power conversion.

Key features of the STIPN1M50-H include:

• Short-circuit rugged IGBT technology for enhanced robustness and reliability.
• Low conduction and switching losses to improve overall system efficiency.
• High-frequency operation capability, enabling compact and lightweight system designs.
• Isolated package with a 2500Vrms insulation voltage, providing excellent electrical isolation and safety.
• Easy-to-use, plug-and-play module that simplifies the design process and reduces time-to-market.
• Integrated NTC thermistor for precise temperature monitoring.

STMicroelectronics has equipped the STIPN1M50-H with advanced protection features to ensure the longevity and stability of the module under various operating conditions. These features include over-temperature protection, under-voltage lockout, and short-circuit protection, all of which contribute to the module's operational integrity.

For designers and engineers looking to enhance the performance of their power conversion systems, the STIPN1M50-H offers a reliable and efficient solution that is backed by STMicroelectronics' commitment to quality and innovation. Its integration of multiple components into a single package not only saves space but also reduces the complexity of power circuit design, making it a versatile choice for a wide range of industrial and consumer applications.
