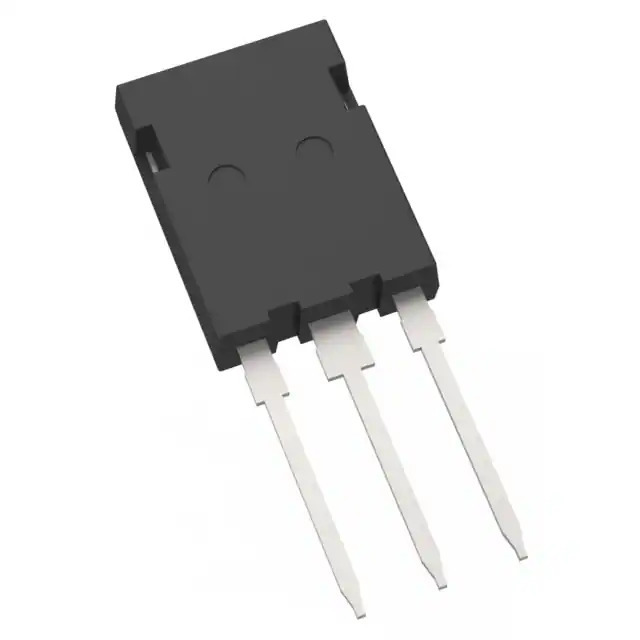

The STGYA50H120DF2 from STMicroelectronics is a robust and high-performance insulated-gate bipolar transistor (IGBT) designed for a wide range of power electronics applications. This IGBT combines advanced technology with a state-of-the-art trench gate field-stop structure, providing an optimal solution for energy-efficient power conversion in both hard-switching and soft-switching modes.
With a maximum collector-emitter voltage of 1200V and a continuous collector current of 50A at a case temperature of 25°C, the STGYA50H120DF2 can handle high power density designs with ease. Its low on-state voltage (V<sub>CE(sat)) minimizes conduction losses, while the fast and soft recovery diode ensures reduced switching losses, making it an excellent choice for applications such as solar inverters, UPS systems, motor drives, and welding equipment.
The device also features a maximum junction temperature of 175°C, providing a safety margin in extreme operating conditions. Its co-packaged freewheeling diode is optimized for performance synergy with the IGBT, further reducing total power dissipation and enhancing system reliability.
STMicroelectronics has designed the STGYA50H120DF2 with the user in mind, offering a Kelvin emitter for improved gate control signal integrity, which is crucial for high-frequency operation. This also helps to minimize gate loop inductance effects, leading to better performance and simplified drive circuitry.
The package is designed to be rugged and ensures excellent thermal performance thanks to its low thermal resistance. The device is also RoHS compliant and halogen-free, catering to environmentally conscious manufacturers and end-users who prioritize sustainability in their products.
In summary, the STGYA50H120DF2 IGBT from STMicroelectronics is a high-efficiency, high-reliability component that meets the demanding requirements of modern power electronic systems. It is a testament to STMicroelectronics' commitment to providing advanced semiconductor solutions that lead the industry in performance, efficiency, and environmental responsibility.
