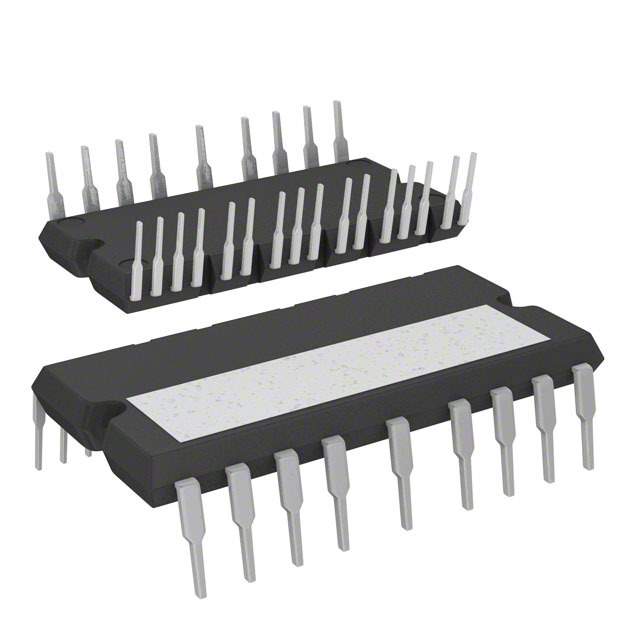

Introducing the STGIPS30C60T-H from STMicroelectronics

The STGIPS30C60T-H is a cutting-edge power semiconductor device designed by STMicroelectronics, a leader in the electronic components industry. This product is an IGBT (Insulated Gate Bipolar Transistor) module that offers a high level of integration for efficient power conversion in a wide range of applications, including motor drives, uninterruptible power supplies (UPS), and inverter systems for renewable energy sources.

Key Features

• Advanced IGBT Technology: Utilizes the latest IGBT technology to provide improved efficiency and performance in power switching applications.
• Integrated Three-Phase Inverter: The module includes six IGBTs configured in a three-phase bridge topology, simplifying design and reducing the overall system size and complexity.
• High Current Rating: With a maximum current rating of 30A, this device can handle significant power levels, making it suitable for a broad range of high-power applications.
• High Voltage Capability: The module is capable of supporting up to 600V, accommodating a wide array of industrial voltage requirements.
• Low Losses: Optimized for low conduction and switching losses, the STGIPS30C60T-H enhances overall system efficiency.
• Overtemperature Protection: Features built-in temperature sensing for improved reliability and safety.
• Short-Circuit Ruggedness: Designed to be resilient in the event of short circuits, extending the lifespan of the device and the systems in which it is used.

Applications

The versatility of the STGIPS30C60T-H makes it an ideal choice for a diverse array of applications. Its robust design and high performance are particularly suited for:

• AC Motor Drives
• Industrial Pump Controls
• UPS Systems
• Power Inverters for Solar and Wind Energy Systems
• Electric Vehicle (EV) Charging Stations

Design and Integration

The STGIPS30C60T-H is designed to facilitate easy integration into system designs. Its compact and standardized package allows for straightforward mounting and thermal management. Designers can take advantage of the module's features to create more efficient and reliable power conversion systems, while reducing time-to-market for their products.

With its combination of performance, integration, and reliability, the STGIPS30C60T-H from STMicroelectronics represents a significant advancement in power semiconductor technology, offering designers a superior solution for their high-power applications.
