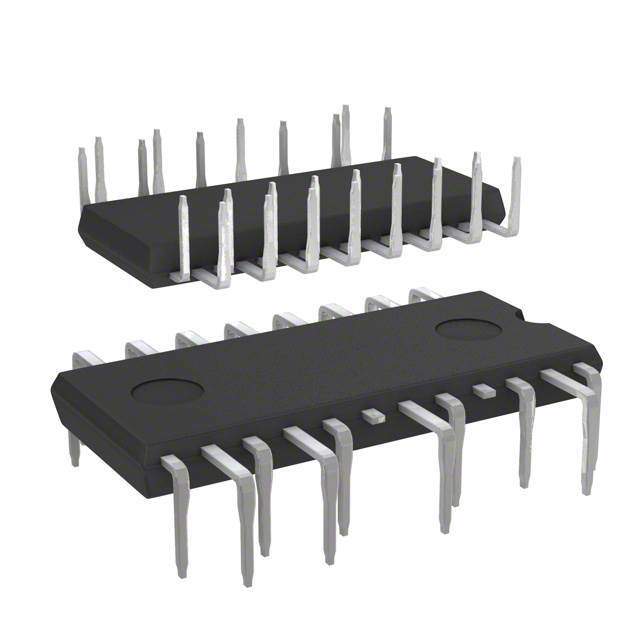

The STGIPN3H60 is a cutting-edge Intelligent Power Module (IPM) from STMicroelectronics, designed as part of the SLLIMM™-nano 2nd series. This small low-loss device integrates the latest semiconductor technology optimized for driving three-phase motor applications, making it an excellent choice for a wide range of energy-efficient solutions.

Featuring a 600V, 3A IGBT-based configuration, the STGIPN3H60 offers a compact, high-performance solution for AC motor drives in applications such as fans, pumps, air conditioners, and refrigerators. Its low saturation voltage and low conduction losses ensure high efficiency, while the built-in over-temperature/over-current protections provide enhanced reliability and longevity for the end product.

The module includes a three-phase inverter bridge with six IGBTs and associated freewheeling diodes, an integrated gate driver optimized to minimize electromagnetic interference (EMI), and undervoltage lockout protection for all channels. The gate driver features advanced Interlocking function, Shoot-through prevention, and Matched propagation delays, which contribute to safe operation and improved system robustness.

Easy to use and implement, the STGIPN3H60 comes in a compact and fully isolated package that simplifies the thermal management and mounting processes. Its footprint is compatible with the industry-standard outline, which facilitates the design-in process and accelerates time-to-market for new products.

STMicroelectronics provides comprehensive technical support for the STGIPN3H60, including application notes, reference designs, and simulation tools that help designers to optimize their applications around the module's capabilities. With its integration of advanced features and protections, the STGIPN3H60 represents a smart choice for designers looking to enhance the efficiency, performance, and reliability of their motor control systems.
