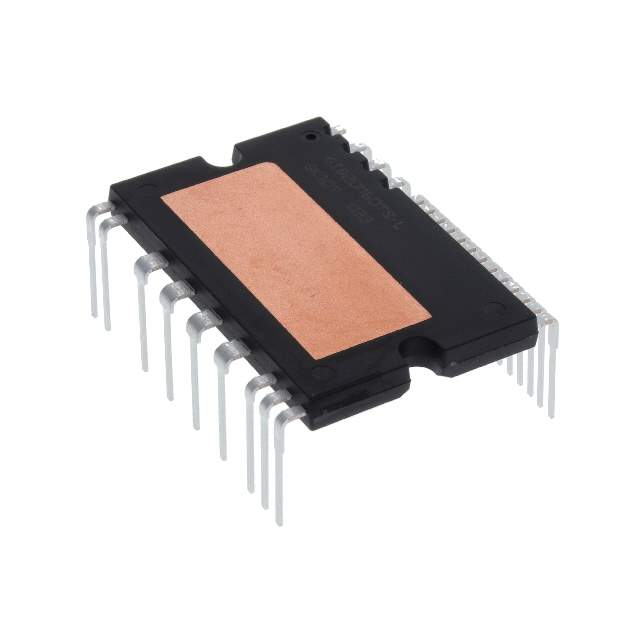

STGIB20M60TS-L - STMicroelectronics IGBT Module

The STGIB20M60TS-L is a cutting-edge Insulated Gate Bipolar Transistor (IGBT) module designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This IGBT module is specifically engineered to provide high-efficiency power conversion in a wide range of applications, including motor drives, renewable energy inverters, and power supplies.

Key Features

• High Power Density: The module is capable of delivering an impressive 20A of continuous collector current (Ic) at a temperature of 25°C, with a maximum operating junction temperature of 175°C, ensuring reliable performance even under high stress.
• Low Switching Losses: With its advanced Trench gate field-stop technology, the STGIB20M60TS-L achieves low V<sub>CE(sat) and reduced switching losses, making it ideal for high-frequency applications.
• Enhanced Ruggedness: The module is built to withstand harsh conditions and provides short-circuit capability for improved system reliability.
• Co-Packaged Diode: Each IGBT in the module is co-packaged with a fast recovery diode, optimized for the IGBT's switching characteristics, which minimizes turn-off losses and enhances overall efficiency.
• Isolation: The module features an electrically isolated baseplate, which simplifies the heat sinking process and provides excellent thermal management.

Applications

The STGIB20M60TS-L is versatile and can be used in a variety of applications. Some of the most common applications include:

• AC and DC motor drives
• Renewable energy systems, such as solar inverters and wind turbine converters
• Uninterruptible power supplies (UPS)
• Welding equipment
• High-performance power supplies and converters

STMicroelectronics Quality

STMicroelectronics is committed to delivering high-quality products that meet the stringent requirements of the electronics industry. The STGIB20M60TS-L IGBT module is no exception, providing designers with a robust, efficient, and reliable solution for advanced power conversion systems.
