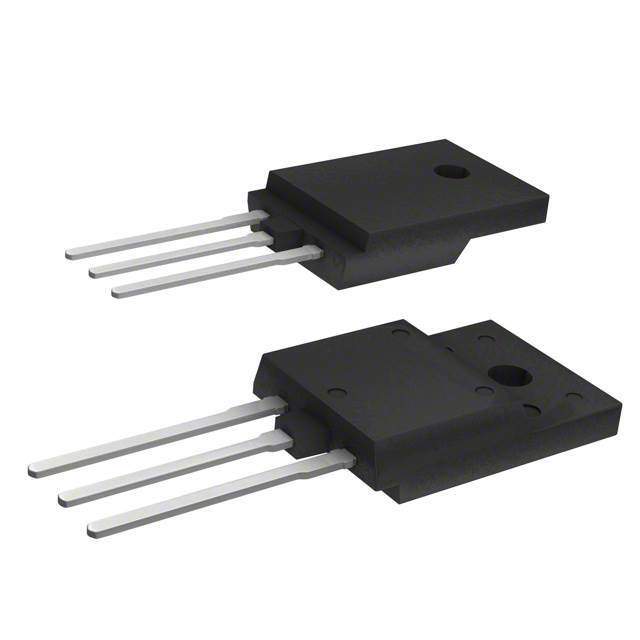

The STGFW30V60F from STMicroelectronics is a high-performance Field Stop Trench insulated-gate bipolar transistor (IGBT) that is designed to meet the demanding needs of a wide range of power applications. This IGBT combines the simple gate-drive characteristics of MOSFETs with the high-current and low-saturation-voltage capability of bipolar transistors, making it an ideal choice for high-efficiency power conversion in both hard-switching and soft-switching circuits.

Key Features

• High Current Capability: With a collector current rating of 60A, the STGFW30V60F can handle high power levels, making it suitable for a variety of applications including inverters and converters.
• Low On-Voltage Drop (VCE(sat)): This IGBT offers a low on-voltage drop, which means reduced conduction losses and improved power efficiency.
• High Switching Speed: The device is optimized for fast switching, allowing for high-frequency operation while minimizing switching losses.
• Maximum Junction Temperature: The STGFW30V60F can operate at a junction temperature of up to 175°C, providing reliability even under high-temperature conditions.
• Co-Packaged with Free Wheeling Diode: The IGBT comes with an integrated fast recovery diode, which further simplifies circuit design and enhances overall system reliability.

Applications

The STGFW30V60F is versatile and can be used in various high-power switching applications. Some of its typical applications include:

• Motor drives and controls
• Uninterruptible power supplies (UPS)
• Power factor correction (PFC) circuits
• Induction heating
• Renewable energy inverters
• Welding equipment

Reliability and Performance

STMicroelectronics is known for its commitment to quality and reliability. The STGFW30V60F is no exception, offering excellent thermal performance and long-term reliability. It is designed to provide a high level of performance while maintaining energy efficiency, making it a smart choice for designers looking to balance power handling with efficiency.
