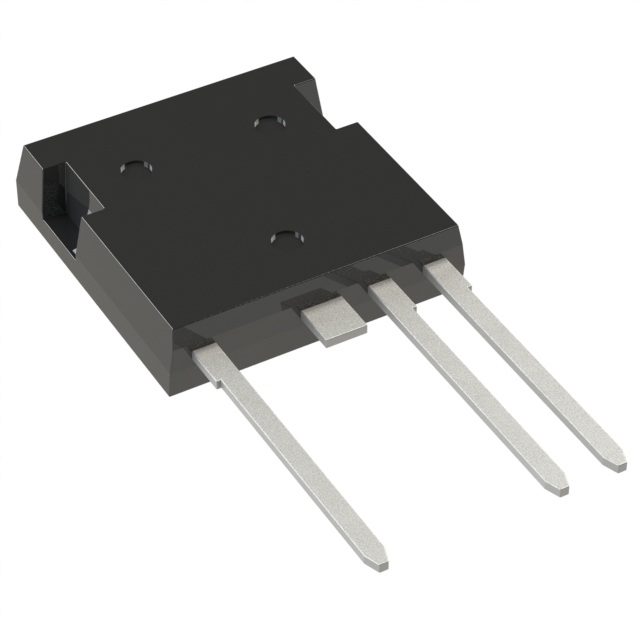

Same model may have multiple batches, images only for reference.
IXXX110N65B4H1 IXYS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IXXX110N65B4H1

Part No IXXX110N65B4H1
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT PT 650V 240A PLUS247
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 650 V
Current - Collector (Ic) (Max) 240 A
Current - Collector Pulsed (Icm) 630 A
Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 110A
Power - Max 880 W
Switching Energy 2.2mJ (on), 1.05mJ (off)
Input Type Standard
Gate Charge 183 nC
Td (on/off) @ 25°C 38ns/156ns
Test Condition 400V, 55A, 2Ohm, 15V
Reverse Recovery Time (trr) 100 ns
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Case / Package TO-247-3 Variant
Supplier Device Package PLUS247™-3
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1495026-IXXX110N65B4H1
Ultra Librarian 3D Model Ultra Librarian IXXX110N65B4H1 CAD Model
