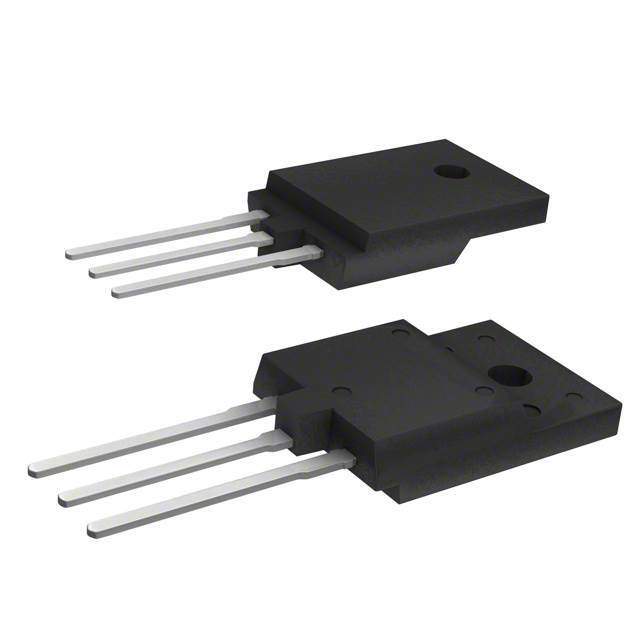

STGFW30NC60V - IGBT - STMicroelectronics

The STGFW30NC60V is a high-performance Insulated Gate Bipolar Transistor (IGBT) developed by STMicroelectronics, a global semiconductor leader known for its innovative and reliable electronic components. This IGBT is designed to meet the demanding requirements of a wide range of power electronics applications, ensuring efficiency and reliability in operation.

Key Features:

• Voltage Rating: The STGFW30NC60V is rated for a collector-emitter voltage of 600V, making it suitable for mid-range voltage applications. This voltage rating ensures that the device can handle typical electrical stresses in applications such as motor drives, inverters, and power supplies.
• Current Rating: With a continuous collector current rating of 30A at 25°C, this IGBT can manage significant power levels, contributing to its versatility in various power management tasks.
• High-Speed Switching: The device features fast switching characteristics, which are crucial for reducing switching losses and improving the efficiency of the overall system in high-frequency operations.
• Low On-State Voltage Drop: The STGFW30NC60V exhibits a low on-state voltage drop (V<sub>CE(sat)), which minimizes conduction losses and enhances performance, especially in applications where the IGBT is in the on-state for extended periods.
• Co-Packaged Free Wheeling Diode: It includes an integrated fast recovery diode, which provides efficient freewheeling functionality, essential for protecting the IGBT against voltage spikes and for ensuring smooth current flow in inductive load applications.

Applications:

The STGFW30NC60V is engineered to cater to a diverse range of applications. It is particularly well-suited for:

• Motor control systems
• Uninterruptible Power Supplies (UPS)
• Power factor correction circuits
• Induction heating
• Welding equipment

Robust and Reliable Design:

STMicroelectronics has designed the STGFW30NC60V with robustness in mind. It features a rugged, durable construction that can withstand harsh environmental conditions and high levels of electrical stress. The device's longevity and reliability are further assured by ST's commitment to quality in both design and manufacturing processes.

Conclusion:

The STGFW30NC60V from STMicroelectronics is an excellent choice for designers looking to implement an efficient, high-performance IGBT in their power management systems. Its combination of high voltage and current ratings, fast switching speeds, and integrated diode make it a versatile component capable of enhancing system performance across a variety of applications.
