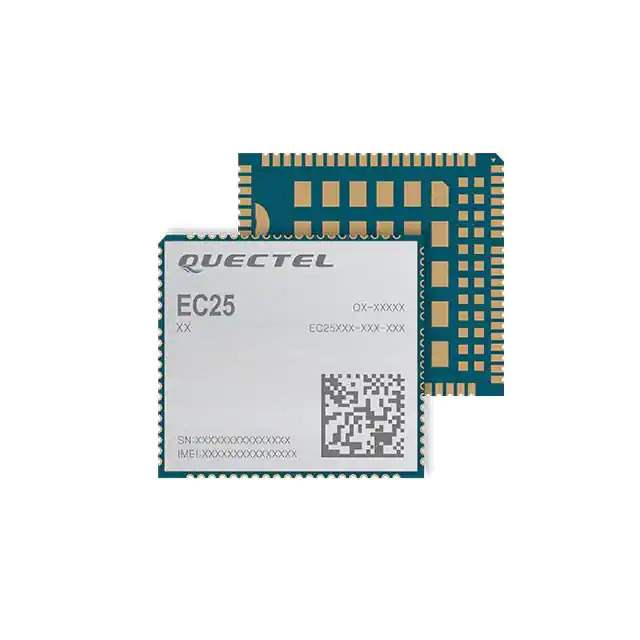

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
Product Status Obsolete
Programmable Not Verified
RF Family/Standard Cellular, Navigation
Protocol BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, WCDMA
Modulation 8PSK, 16QAM, 64QAM, GMSK
Frequency 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz
Data Rate 480Mbps
Power - Output 33dBm
Sensitivity -111dBm
Serial Interfaces I²C, PCM, UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 3V ~ 3.6V
Mounting Type Card Edge
Temperature Range - Operating -35°C ~ 75°C
Package / Case Module
Base Product Number EC25
Standard Package 250 pcs
MSL Level 3 (168 Hours)
ECCN OBSOLETE
Win Source Part Number 845004-EC25AUTLFA-512-STD
Ultra Librarian 3D Model Ultra Librarian EC25AUTLFA-512-STD CAD Model

Description

The Win Source Part Number 845004-EC25AUTLFA-512-STD is an RF Transceiver Module and Modem in the RF and Wireless category. It is a versatile module that operates at frequencies of 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, and 1.9GHz.

  • Frequencies: 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, and 1.9GHz
  • Protocols: BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, and WCDMA
  • Data Rate: 480Mbps
  • Power Output: 33dBm
  • Sensitivity: -111dBm
  • Modulation Schemes: 8PSK, 16QAM, 64QAM, and GMSK
  • Serial Interfaces: I²C, PCM, UART, and USB
  • Voltage Supply: 3V to 3.6V
  • Temperature Range: -35°C to 75°C
  • Package: Module
  • Manufacturer: Quectel
