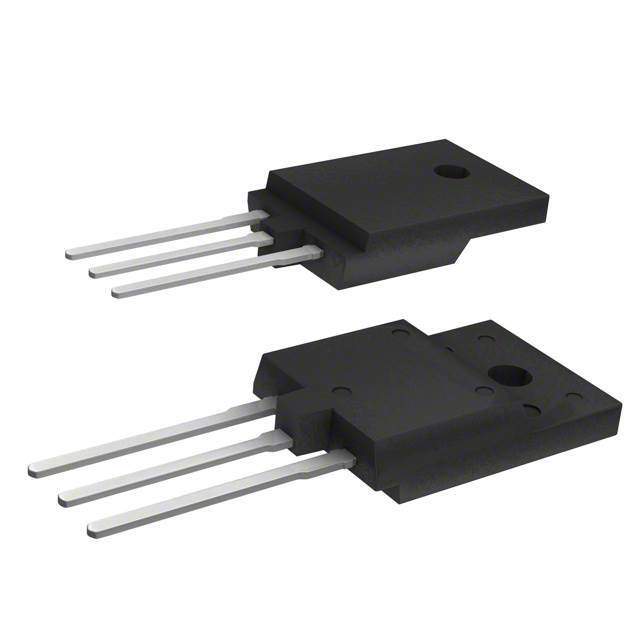

The STGFW30H65FB, designed and manufactured by STMicroelectronics, is a high-performance Field Stop Trench insulated gate bipolar transistor (IGBT) that offers an exceptional combination of efficiency, reliability, and thermal management for a wide range of high-power applications. This IGBT is specifically engineered to meet the demanding requirements of modern electronic systems, providing a robust solution for power conversion and control.

Key Features

• 650V collector-emitter breakdown voltage
• 30A continuous collector current at 25°C
• High-speed switching with low turn-off energy
• Low on-voltage drop (V<sub>CE(sat)) for improved efficiency
• Short-circuit withstand time rated for 10μs
• Co-packaged with a soft and fast recovery anti-parallel diode
• Optimized for hard-switching applications up to 20 kHz
• Maximum junction temperature of 175°C

Applications

The STGFW30H65FB is suitable for a diverse range of applications where high efficiency and fast switching are crucial. These include, but are not limited to:

• Uninterruptible Power Supplies (UPS)
• Welding equipment
• Solar inverters
• Induction heating systems
• High-frequency converters
• Power factor correction circuits

Performance and Advantages

The device's advanced Field Stop Trench technology provides a fine-tuned balance between conduction and switching losses, leading to outstanding efficiency and thermal performance. Its robust design ensures reliable operation even under harsh conditions, while the integrated fast recovery diode allows for reduced electromagnetic interference (EMI) and improved overall system ruggedness.

With a design focused on minimizing switching losses and providing excellent thermal characteristics, the STGFW30H65FB is an ideal choice for designers looking to optimize their power systems for both performance and size. Its high current handling capability and robustness make it a versatile component in any power electronic designer's toolkit.
