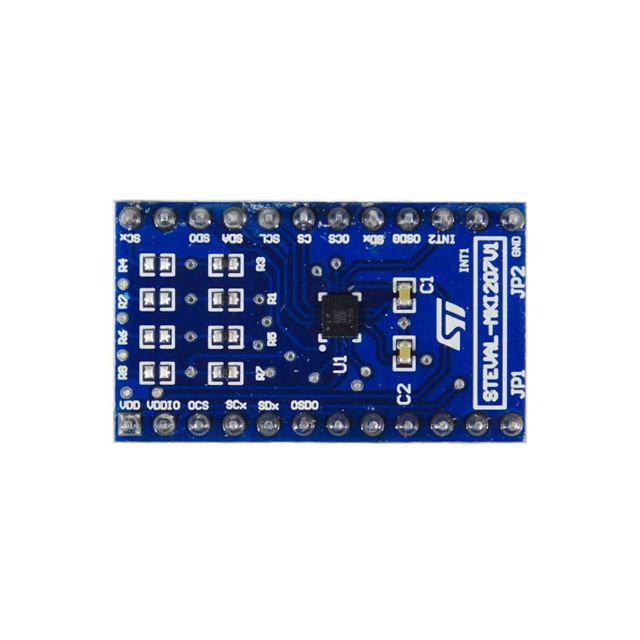

STEVAL-MKI207V1 - Inertial Measurement Unit Evaluation Board

The STEVAL-MKI207V1 from STMicroelectronics is a state-of-the-art evaluation board designed for the LSM6DSRX iNEMO inertial module. This compact and versatile board is an ideal solution for a wide range of applications requiring high-resolution motion tracking, such as industrial, consumer, and IoT devices.

Key Features

• Advanced Sensor Technology: The LSM6DSRX is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope, providing high-precision data in a small form factor.
• Wide Measurement Range: The accelerometer can measure acceleration up to ±16 g, while the gyroscope supports angular rate measurements up to ±4000 dps (degrees per second), catering to a broad spectrum of movement dynamics.
• High Data Rate: The board supports both I2C and SPI communication, enabling high-speed data transfer to a host controller for real-time applications.
• Embedded Features: The LSM6DSRX includes a variety of embedded functions, such as a finite state machine, machine learning core, and advanced pedometer, step detector, and step counter algorithms.
• Power Efficiency: Designed for low-power consumption, the board is suitable for battery-operated devices, extending operational time without sacrificing performance.
• Configurable Settings: Users can easily configure settings such as full-scale ranges, output data rates, and interrupt signals through the provided software interface.

Applications

The STEVAL-MKI207V1 is versatile and can be used in a variety of applications, including:

• Wearable sensors
• Gaming and virtual reality input devices
• Industrial and robotics control systems
• Navigation systems and drones
• Smartphone and tablet motion analysis

Development Support

The evaluation board is supported by the Unico GUI software, which allows for easy configuration and data visualization, enabling developers to quickly prototype and test their applications. The STEVAL-MKI207V1 is also compatible with the STEVAL-MKI109V3 motherboard, which provides additional interfaces and power options for comprehensive evaluation.

With its robust capabilities and ease of use, the STEVAL-MKI207V1 is an excellent tool for developers looking to harness the advanced features of the LSM6DSRX inertial module in their next project.
