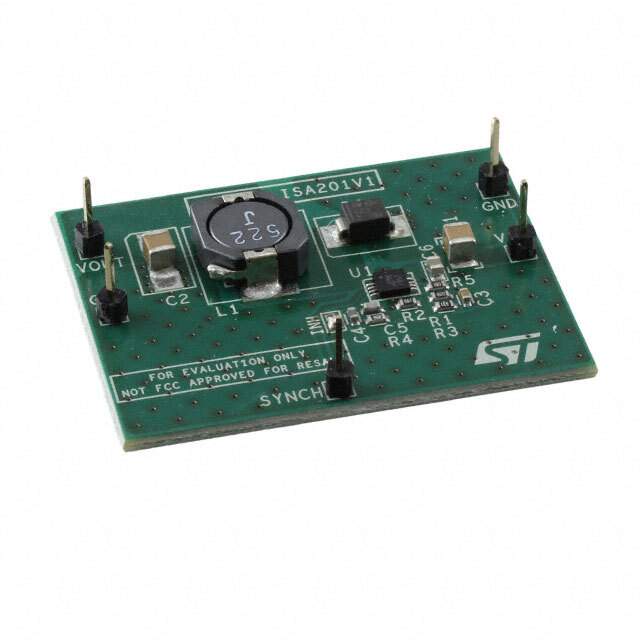

STEVAL-ISA201V1 - STMicroelectronics Evaluation Board

The STEVAL-ISA201V1 is an advanced evaluation board designed by STMicroelectronics, a global semiconductor leader known for their innovative integrated circuits. This product specifically showcases the performance and versatility of the VIPer26K high-voltage converter, which is well-suited for switched-mode power supply (SMPS) applications.

Featuring a wide input voltage range, the STEVAL-ISA201V1 can operate from 85V to 265V AC, making it adaptable to various power networks worldwide. The board is designed to deliver a constant output voltage of 12V DC with an output power capability up to 12W, catering to a broad spectrum of applications in the consumer, industrial, and lighting sectors.

The VIPer26K IC at the heart of the STEVAL-ISA201V1 utilizes STMicroelectronics' proprietary energy-saving technology. It includes features such as a jittered 115 kHz switching frequency, which reduces electromagnetic interference (EMI) and allows for the use of smaller external components. This results in a compact and cost-effective power solution.

Safety and protection are paramount in power supply design, and the STEVAL-ISA201V1 does not fall short in this regard. The board includes multiple protection features such as overcurrent protection, brown-out protection, and thermal shutdown, which contribute to the longevity and reliability of the end application.

The evaluation board is also user-friendly, equipped with LED indicators for visual feedback on the operational status. For engineers and developers, the STEVAL-ISA201V1 serves as a robust platform for testing and prototyping, offering flexibility and ease of integration into their projects.

In summary, the STEVAL-ISA201V1 from STMicroelectronics is a testament to the company's commitment to providing innovative, high-quality power solutions. It stands as an excellent tool for those looking to evaluate the VIPer26K converter's features and performance in a real-world setting.
