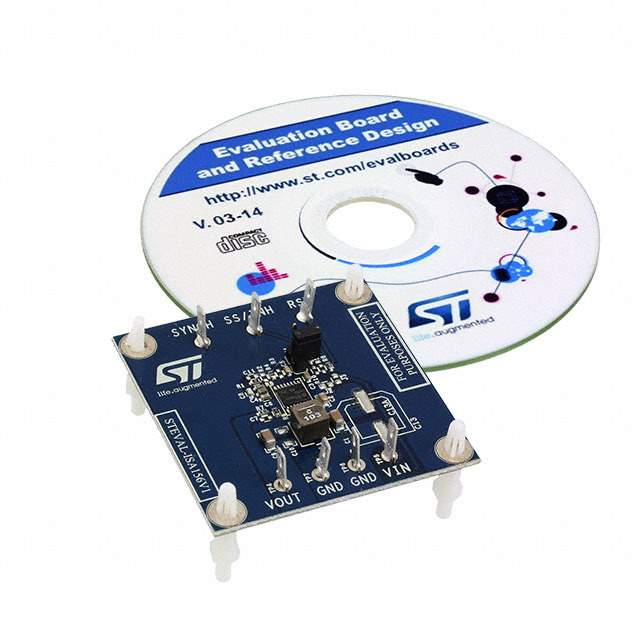

STEVAL-ISA156V1 - An Efficient Power Solution

The STEVAL-ISA156V1 is a product evaluation board from STMicroelectronics, designed to simplify the process of evaluating and developing applications with the L7987L regulator. This high-performance switching regulator is capable of delivering up to 3 A of output current with excellent efficiency and thermal performance.

Key Features

• High Efficiency: The L7987L regulator on the STEVAL-ISA156V1 board boasts a wide input voltage range from 4.5 V to 61 V, ensuring efficient operation over a broad range of input sources.
• Adjustable Output: Users can adjust the output voltage from 0.8 V to VIN, making the board versatile for various applications requiring different voltage levels.
• Compact Design: The board's design focuses on a small form factor, providing a compact power solution that can fit into tight spaces in industrial designs.
• Thermal Management: With an optimized layout for heat dissipation, the STEVAL-ISA156V1 ensures reliable performance even under high load conditions.
• Protection Features: The evaluation board includes overcurrent protection, thermal shutdown, and under-voltage lockout, safeguarding the circuitry during abnormal operating conditions.

Applications

The STEVAL-ISA156V1 is suitable for a wide array of applications, particularly those requiring a reliable and efficient power supply. It is ideal for:

• Industrial power systems
• Consumer electronics
• Telecommunications equipment
• Computer peripherals

Easy to Use

Designed with the end-user in mind, the STEVAL-ISA156V1 offers ease of use with minimal external components required. It provides a ready-to-test platform, enabling quick assessment and prototyping, thus accelerating the development cycle for engineers and product designers.

About STMicroelectronics

STMicroelectronics is a global leader in the semiconductor market, offering innovative solutions and a wide range of products that empower the electronics at the heart of everyday life. The STEVAL-ISA156V1 is a testament to their commitment to providing advanced technology that meets the needs of a fast-evolving industry.
