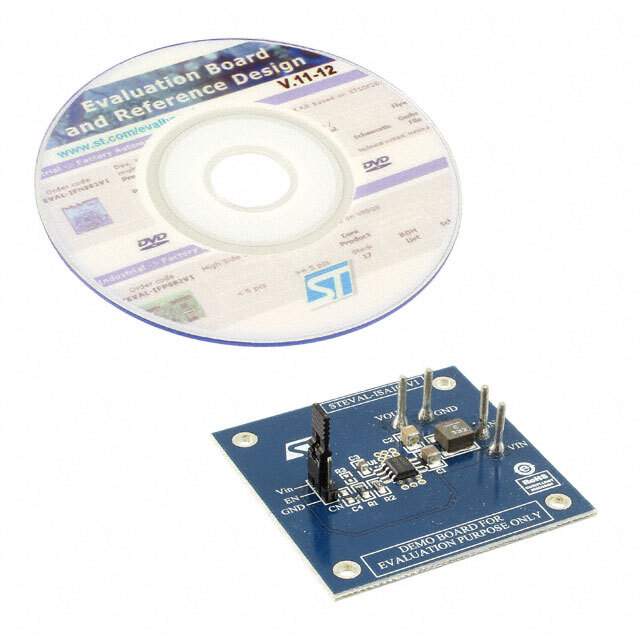

STEVAL-ISA107V1 - STMicroelectronics Evaluation Board

The STEVAL-ISA107V1 from STMicroelectronics is a state-of-the-art evaluation board designed for assessing the performance and efficiency of the L7987, a high-efficiency DC-DC converter. This versatile evaluation platform is an excellent tool for engineers and developers who need to implement robust power solutions in their applications.

The L7987 is a step-down switching regulator capable of delivering up to 3 A of continuous current to the load with an input voltage range from 4.5 V to 61 V. This wide input range makes the STEVAL-ISA107V1 an ideal choice for a variety of industrial, automotive, and consumer applications where the power supply might experience large voltage fluctuations.

Key features of the STEVAL-ISA107V1 include:

• Adjustable output voltage from 0.8 V to VIN, allowing for a high degree of flexibility to power a broad range of devices.
• High switching frequency of up to 1 MHz, which permits the use of small-sized external components, reducing the overall solution footprint and saving board space.
• Thermal shutdown and overcurrent protection, ensuring reliable operation under a wide range of conditions and enhancing the longevity of the board.
• Efficiency up to 95%, minimizing energy loss and heat generation, making it suitable for energy-sensitive applications.

The evaluation board is equipped with several test points and jumpers, allowing for thorough experimentation and easy measurement of the L7987's performance parameters. It also features a heatsink design to manage thermal performance during high-power or high-ambient temperature operation.

With its robust design and comprehensive feature set, the STEVAL-ISA107V1 evaluation board is an indispensable tool for designers looking to evaluate the L7987 regulator for use in their power supply designs. Whether for rapid prototyping or detailed performance analysis, the STEVAL-ISA107V1 offers a convenient and efficient solution for a wide range of DC-DC conversion applications.
