STEVAL-ISA101V1 - STMicroelectronics Product Overview

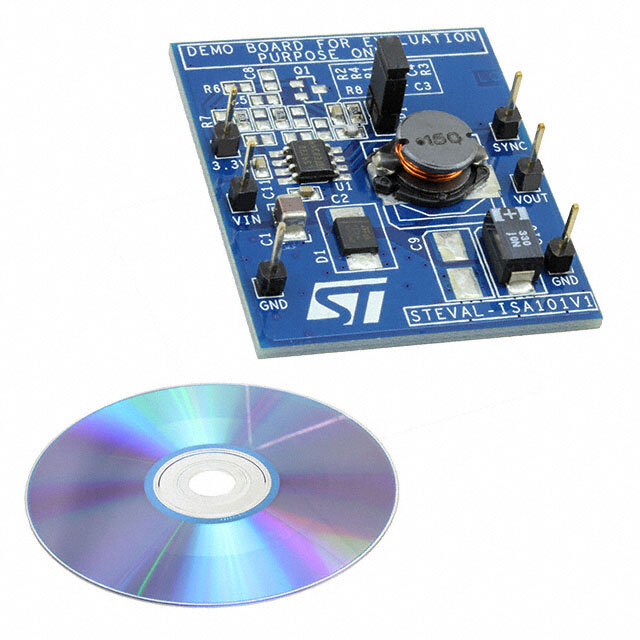

The STEVAL-ISA101V1 is a state-of-the-art product demonstration board from STMicroelectronics, designed specifically for the evaluation of advanced power solutions. This evaluation board showcases the capabilities of a highly efficient, non-isolated, synchronous step-down switching regulator which is an integral part of modern power management systems.

At the heart of the STEVAL-ISA101V1 is the L7986A regulator, a robust and versatile component that can deliver up to 3 A of continuous current with excellent thermal performance. The regulator operates over a wide input voltage range from 4.5 V to 38 V, making the board suitable for a variety of applications ranging from industrial to consumer electronics.

The evaluation board is engineered to demonstrate the full capabilities of the L7986A in a real-world environment. It features an adjustable output voltage that can be set from 0.8 V to VIN, providing flexibility for testing different load scenarios. The high switching frequency of up to 1 MHz allows for the use of small surface-mount inductors and capacitors, reducing the overall solution size and enhancing the power density.

The STEVAL-ISA101V1 also includes a host of protection features to safeguard the circuit against adverse conditions. These include overcurrent protection, thermal shutdown, and short-circuit protection, ensuring reliable operation under various stress conditions. Moreover, the board is equipped with an enable pin for power sequencing and a soft-start feature to minimize inrush current during startup.

With its comprehensive set of features, the STEVAL-ISA101V1 is an excellent tool for designers and engineers looking to evaluate the performance of the L7986A regulator in their power supply designs. Whether it's for prototyping or educational purposes, this evaluation board is a valuable asset for developing efficient and compact power solutions.

For more information, datasheets, and technical support, interested parties can visit the official STMicroelectronics website or contact their local sales office.
