STEVAL-ISA044V6 - STMicroelectronics Product Overview

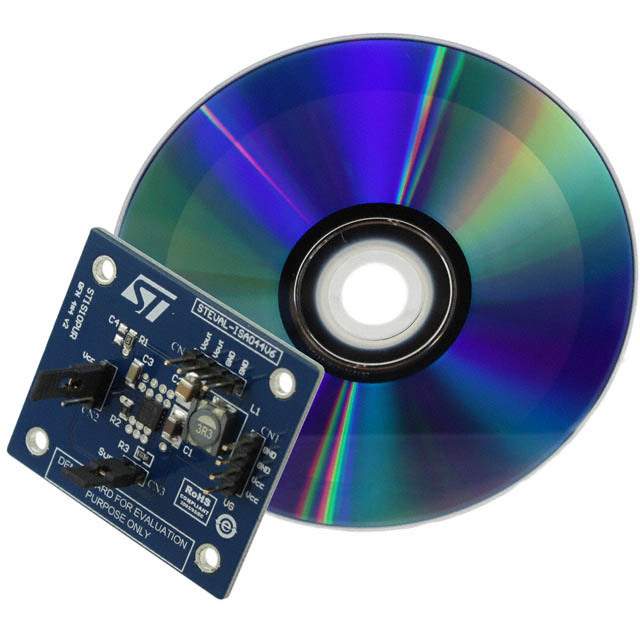

The STEVAL-ISA044V6 is a highly efficient and compact power management product designed by STMicroelectronics, one of the leading companies in the semiconductor industry. This product is a demonstration board based on the L7987L, a robust and versatile step-down switching regulator capable of delivering up to 3 A of continuous current to the load.

The board operates over a wide input voltage range from 4.5 V to 61 V, making it suitable for a variety of applications, including industrial control systems, home appliances, and automotive electronics. With its high switching frequency, which can be adjusted up to 1 MHz, the STEVAL-ISA044V6 allows for the use of small-sized external components, thus reducing the overall footprint and BOM costs.

One of the key features of this product is its excellent thermal performance, which is achieved through an enhanced power package that ensures efficient heat dissipation. This feature allows the STEVAL-ISA044V6 to maintain optimal performance even under high power operation or in environments with limited airflow.

The board comes with several protection features, such as overcurrent protection, thermal shutdown, and overvoltage protection, ensuring the longevity and reliability of both the board and the end application. Additionally, the STEVAL-ISA044V6 includes soft-start and enable functions that provide designers with control over the power-up sequence of their systems.

For designers and engineers looking to quickly prototype or integrate a power supply solution into their projects, the STEVAL-ISA044V6 offers an excellent platform due to its flexibility and ease of use. The board is fully assembled and tested, which allows for immediate evaluation and speeds up the development process.

STMicroelectronics provides comprehensive technical documentation for the STEVAL-ISA044V6, including datasheets, application notes, and design guidelines, enabling designers to fully understand and leverage the capabilities of the L7987L regulator for their specific applications.

In summary, the STEVAL-ISA044V6 is a testament to STMicroelectronics' commitment to providing innovative and high-quality power management solutions that meet the evolving needs of the electronics industry.
