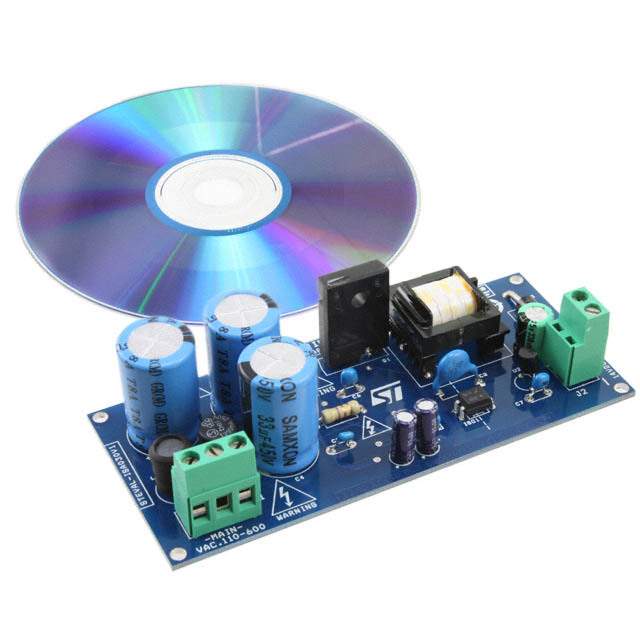

Introducing the STEVAL-ISA030V1 Evaluation Board

The STEVAL-ISA030V1 is a highly efficient evaluation board designed by STMicroelectronics, tailored for applications that demand robust power supply solutions. This evaluation board is specifically created for testing the performance of the L7986A, a step-down switching regulator capable of delivering up to 3A of current with excellent power efficiency.

Key Features

• High Efficiency: The L7986A regulator on the STEVAL-ISA030V1 boasts a wide input voltage range from 4.5V to 38V, making it versatile for various applications. It is capable of providing a high-efficiency solution with an adjustable output voltage from 0.8V to VIN, ensuring compatibility with a broad range of devices.
• Thermal Management: Equipped with thermal shutdown and overcurrent protection, the board ensures safe operation under various conditions, preserving the longevity of both the board and the end application.
• Compact Design: The STEVAL-ISA030V1 is designed with a minimal footprint, allowing for easy integration into existing designs without the need for significant rework or additional space.
• Flexibility: With its adjustable output voltage and the ability to synchronize with an external clock, this evaluation board offers flexibility for designers to tailor the power supply to their specific needs.

Applications

The STEVAL-ISA030V1 is suitable for a wide range of applications, including but not limited to:

• Industrial control systems
• Consumer electronics
• Telecommunication devices
• Computer peripherals

Easy to Use

STMicroelectronics has designed the STEVAL-ISA030V1 with ease of use in mind. It includes jumpers and test points for convenient measurement of efficiency and output voltage, facilitating quick and accurate evaluations. This evaluation board is an excellent choice for engineers looking to test the capabilities of the L7986A regulator within their power supply designs.

With its combination of high efficiency, robust protection features, and versatile application range, the STEVAL-ISA030V1 from STMicroelectronics is an invaluable tool for developers seeking to optimize their power management solutions.
