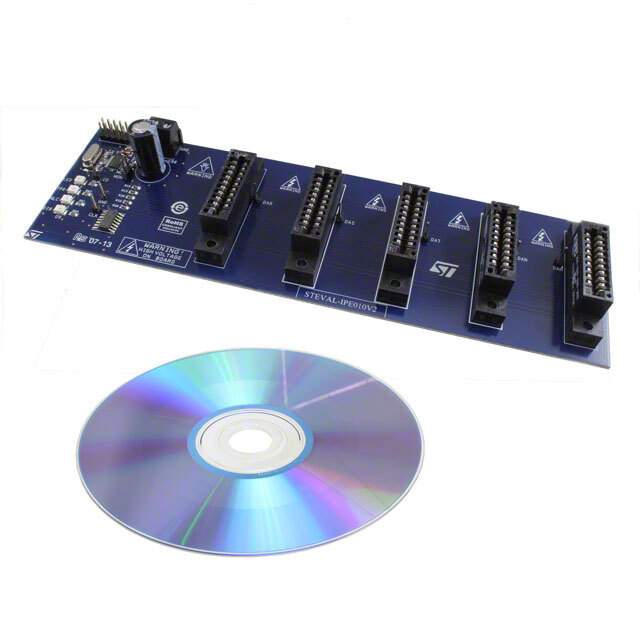

The STEVAL-IPE010V2 from STMicroelectronics is a versatile and innovative evaluation board designed for developers and engineers who are looking to explore the capabilities of Power Over Ethernet (PoE) technology. This evaluation board is particularly suitable for those interested in developing PoE applications such as IP cameras, VoIP phones, and wireless access points.

The board is based on the PM8805 and PM8804 IEEE 802.3at compliant PoE interface and PWM controller, which ensures reliable and efficient power delivery to powered devices (PDs) over Ethernet cables. The PM8805 integrates a powered device interface and a PWM controller, while the PM8804 is a companion PoE-PD interface chip that supports high power applications up to 40 W.

One of the key features of the STEVAL-IPE010V2 is its support for both PoE and PoE+ standards, allowing for a wide range of applications and greater flexibility in terms of power requirements. The board is capable of automatic detection and classification of the power sourcing equipment (PSE) before enabling the power path, ensuring a safe and secure connection.

The evaluation board also includes numerous protection features such as thermal cut-off, under-voltage lockout (UVLO), and overvoltage protection. These features contribute to the robustness of the design and the longevity of the end product. Additionally, the STEVAL-IPE010V2 offers signature resistor disconnect functionality through an auxiliary detection resistor, which enhances the safety mechanisms of the PoE system.

For developers, the board comes with comprehensive documentation and software tools that facilitate easy setup and testing. This allows for a more streamlined development process, enabling faster time-to-market for new products and applications.

In summary, the STEVAL-IPE010V2 evaluation board is a powerful tool for anyone looking to harness the potential of PoE technology in their next project, backed by the quality and expertise of STMicroelectronics.
