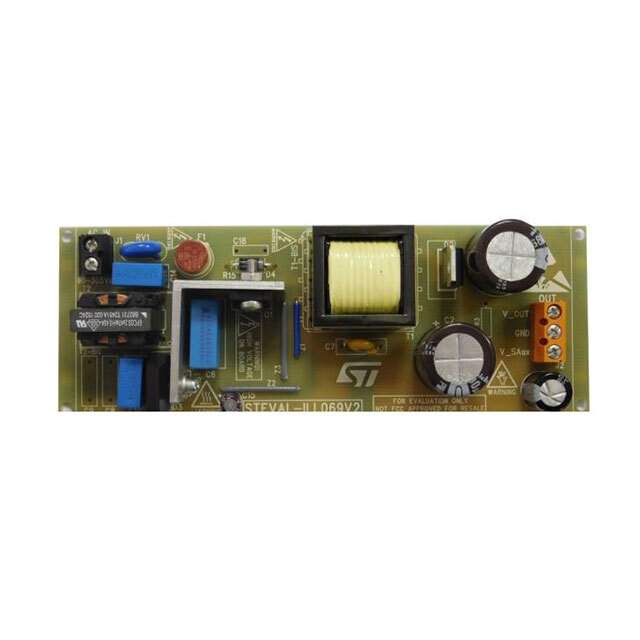

The STEVAL-ILL069V2, designed by STMicroelectronics, is a sophisticated LED driver evaluation board that is part of ST's extensive portfolio of lighting solutions. This board is specifically tailored for driving LEDs with high efficiency and accuracy, making it an ideal choice for developers and engineers looking to prototype or test LED lighting applications.

Key Features

• Advanced LED Driver: The board is equipped with ST’s LED6000 driver, which can deliver up to 3 A of current to the LED load. This driver is designed for high performance and flexibility, ensuring that it can cater to a wide range of LED lighting requirements.
• Wide Input Voltage Range: The STEVAL-ILL069V2 operates over a broad input voltage range from 6.5 V to 48 V, allowing it to be used in various power supply scenarios, from battery-operated systems to industrial power rails.
• Dimming Capability: It features both analog and PWM dimming control inputs, providing users with precise control over the brightness levels of their LED arrays.
• Thermal Protection: The board includes thermal shutdown protection, which safeguards the LED driver against overheating, thus ensuring longevity and reliability of the system.
• Flexible Power Configuration: The evaluation board can be configured for different topologies such as buck, boost, or buck-boost, giving designers the versatility to adapt the board to their specific application needs.

Applications

The STEVAL-ILL069V2 is suitable for a variety of applications, including:

• General-purpose LED lighting
• Architectural and decorative lighting
• LED backlighting for LCD displays
• Emergency lighting
• Signage and signal lighting

With its robust design and versatile features, the STEVAL-ILL069V2 is a comprehensive solution for anyone looking to develop or evaluate LED lighting systems. Whether you are an experienced engineer or a hobbyist, this evaluation board from STMicroelectronics provides a reliable platform for your LED driver projects.
