STEVAL-IHM042V1 - Low Voltage Three-Phase Inverter Power Board

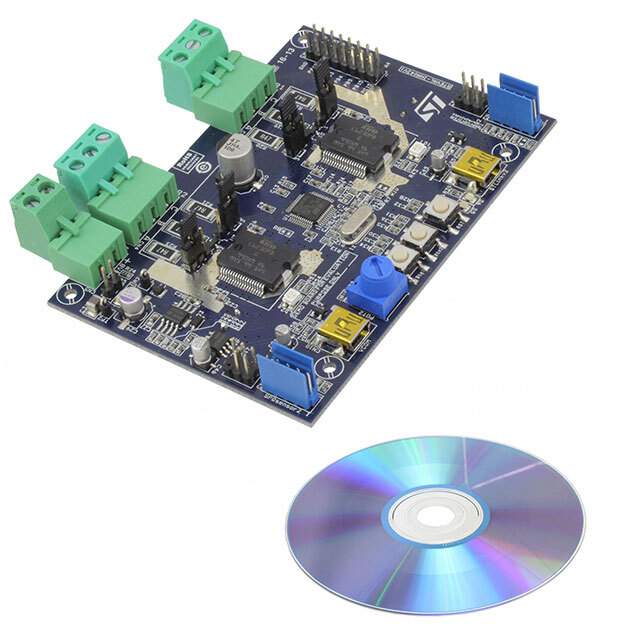

The STEVAL-IHM042V1, designed and manufactured by STMicroelectronics, is a sophisticated power board specifically tailored for low voltage three-phase inverter applications. This innovative module is part of ST's portfolio of evaluation tools that are instrumental in the development and testing of advanced motor control solutions.

The board is based on the STGIPN3H60 – a smart power module that integrates IGBTs, freewheeling diodes, and an operational amplifier. This integration facilitates the design of a highly efficient, compact inverter system. The STEVAL-IHM042V1 is capable of driving three-phase motors with a wide range of voltages, making it versatile for various low voltage applications.

Key features of the STEVAL-IHM042V1 include:

• Three-phase inverter with a maximum phase current of 10 A (rms).
• On-board operational amplifier for advanced current sensing.
• Overcurrent and overtemperature protection for enhanced safety and reliability.
• Undervoltage lockout to prevent operation at insufficient voltages.
• Embedded microcontroller STM32 footprint, facilitating easy interfacing and control.
• Compatible with a wide range of motor control kits and software from STMicroelectronics.

The board is an excellent choice for developers looking to create and test motor control solutions for applications such as home appliances, HVAC systems, electric fans, and other low voltage motor-driven systems. The STEVAL-IHM042V1 is not only a testament to STMicroelectronics' commitment to innovation but also to providing practical solutions that speed up the development cycle for engineers and designers.

With the inclusion of an STM32 microcontroller footprint, users can easily integrate the board with ST's extensive range of software development tools, which include advanced motor control algorithms and real-time debugging features. This allows for a seamless transition from concept to prototype, reducing time-to-market and ensuring a high level of integration in the final application.

Overall, the STEVAL-IHM042V1 is a robust, flexible solution for anyone looking to explore the capabilities of low voltage three-phase inverter systems and is an invaluable component of the motor control design toolkit.
