Estimated Pruduction Lead Time 51 Weeks

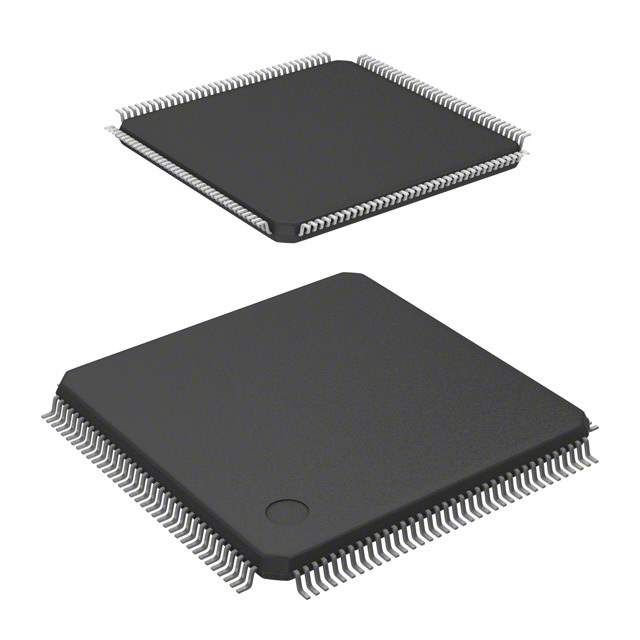

Features e200z3 series Microcontroller IC 32-Bit 80MHz 1.5MB (1.5M x 8) FLASH 144-LQFP (20x20)
Manufacturer STMicroelectronics
Series Automotive, AEC-Q100, SPC56
Package Tray
Core Processor e200z3
Core Size 32-Bit
Speed 80MHz
Connectivity CANbus, EBI/EMI, LINbus, SCI, SPI, UART/USART
Peripherals DMA, POR, PWM, WDT
Number of I/O 80
Program Memory Size 1.5MB (1.5M x 8)
Program Memory Type FLASH
Supply Voltage 1.14V ~ 1.32V
Data Converters A/D 32x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 144-LQFP
Case / Package 144-LQFP (20x20)
Family Name SPC563
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Part Number 497-19141, SPC563M64L5COAY-ND
Quantity per package 60
Popularity High
Supply and Demand Status Balance
Win Source Part Number 897027-SPC563M64L5COAY
Ultra Librarian 3D Model Ultra Librarian SPC563M64L5COAY CAD Model

Description

STMicroelectronics SPC563M64L5COAY Microcontroller

The SPC563M64L5COAY is a high-performance automotive microcontroller designed by STMicroelectronics, tailored to meet the demanding requirements of modern vehicle electronics. This device is part of the SPC56 32-bit MCU family, which is based on the Power Architecture® developed by NXP and IBM and is widely recognized for its speed, efficiency, and reliability in embedded systems.

Key Features

  • Core: The microcontroller features a 32-bit Power Architecture® VLE (Variable Length Encoding) compliant CPU core, which operates at a frequency of up to 64 MHz, providing a balanced combination of computational power and energy efficiency.
  • Memory: It is equipped with 64KB of RAM and 1.5MB of flash memory, offering ample space for complex applications and software updates.
  • Timers and Communication Interfaces: The device includes a rich set of peripherals, such as multiple timers, multiple CAN interfaces, and serial communication interfaces like LIN, SPI, and UART, facilitating versatile connectivity and control options.
  • ADC: An integrated 10-bit Analog-to-Digital Converter (ADC) with multiple channels allows for accurate sensor data acquisition, essential for real-time control and monitoring tasks.
  • Temperature Range: The microcontroller operates over a wide temperature range from -40°C to 125°C, ensuring reliable performance under extreme environmental conditions.
  • Package: The SPC563M64L5COAY comes in a LQFP144 package, which is suitable for space-constrained applications while still providing sufficient I/O pins for complex functionalities.

Applications

Designed with automotive applications in mind, the SPC563M64L5COAY is ideal for use in powertrain systems, body control modules, gateways, and safety management systems. Its robust design and comprehensive feature set also make it suitable for industrial control systems and other applications that require high reliability and real-time performance.

Conclusion

In summary, the SPC563M64L5COAY microcontroller from STMicroelectronics represents a powerful and versatile solution for automotive and industrial electronic systems. With its advanced architecture, extensive memory, and wide range of peripherals, this MCU is engineered to drive innovation and efficiency in the most challenging applications.
