Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Embedded - MCU, DSP
Mfr STMicroelectronics
Series STM32L4
Package Bulk
Board Type Evaluation Platform
Type MCU 32-Bit
Core Processor ARM® Cortex®-M4
Platform Nucleo-144
Utilized IC / Part STM32L4R5ZI, mbed-Enabled Development
Mounting Type Fixed
Contents Board(s)
Interconnect System Arduino R3 Shield, ST Morpho, ST Zio
Suggested Programming Environment GNU GCC, IAR EW, Keil MDK
Base Product Number NUCLEO
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8471.50.0150
Other Names 497-17668
Standard Package 1
Win Source Part Number 1231300-NUCLEO-L4R5ZI
Ultra Librarian 3D Model Ultra Librarian NUCLEO-L4R5ZI CAD Model

Description

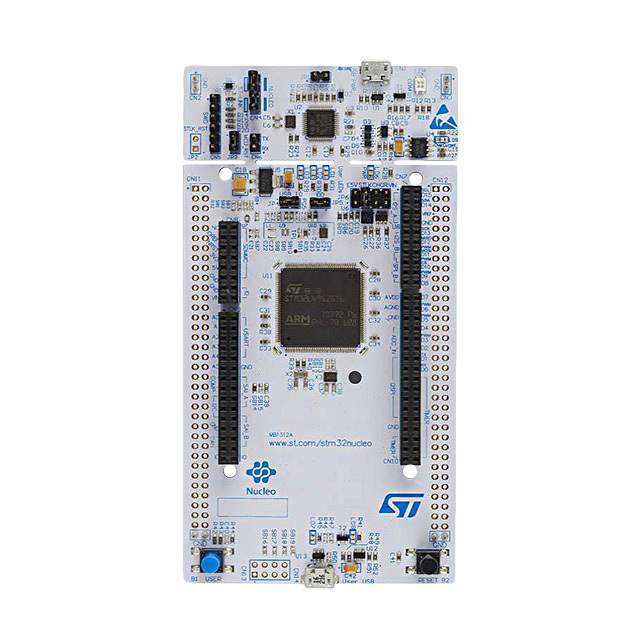

The NUCLEO-L4R5ZI is a highly versatile development board from STMicroelectronics designed to support the STM32L4 series of microcontrollers. This particular model focuses on the STM32L4R5ZI MCU, which is well-suited for a wide range of applications due to its performance, low-power consumption, and rich set of peripherals.

Key Features

  • STM32L4R5ZI Microcontroller: At the heart of the NUCLEO-L4R5ZI development board is the STM32L4R5ZI MCU, which boasts an ARM Cortex-M4 core with a floating-point unit, running at up to 120 MHz. The microcontroller provides high computational power while maintaining energy efficiency, making it ideal for complex and power-sensitive applications.
  • Generous Memory: The onboard MCU comes with 2 MB of Flash memory and 640 KB of RAM, allowing for robust application development without external memory constraints.
  • Extensive Connectivity: The board includes support for a wide array of connectivity options such as USB OTG, CAN, I2C, SPI, and USART interfaces, as well as various timers, ADCs, and DACs.
  • Arduino Uno V3 Compatibility: The NUCLEO-L4R5ZI development board is compatible with Arduino Uno V3 shields, providing a familiar interface for hobbyists and allowing for easy expansion with a vast ecosystem of Arduino-compatible hardware.
  • ST Morpho Extension: The ST Morpho headers open up additional expansion capabilities, making it possible to connect to additional hardware and modules for prototyping.
  • Integrated ST-LINK/V2-1: The board includes an embedded ST-LINK/V2-1 debugger/programmer, which eliminates the need for external tools to program or debug the MCU, streamlining the development process.

Development Support

The NUCLEO-L4R5ZI is supported by a range of software tools, including the STM32CubeMX configuration and initialization code generator and a comprehensive set of middleware components. The board is also compatible with various Integrated Development Environments (IDEs), such as IAR, Keil, and the ARM mbed online platform, which further simplifies development.

Whether you are a professional engineer or a hobbyist, the NUCLEO-L4R5ZI development board offers an accessible and flexible platform for creating innovative applications ranging from Internet of Things (IoT) devices to power-conscious portable gadgets.
