Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Embedded - MCU, DSP
Mfr NXP USA Inc.
Series LPC5500
Package Bulk
Product Status Active
Type MCU 32-Bit
Core Processor ARM® Cortex®-M33
Platform LPCXpresso™
Utilized IC / Part LPC55S6x
Mounting Type Fixed
Contents Board(s)
Board Type Evaluation Platform
Operating System -
Interconnect System Arduino R3 Shield, mikroBUS Click, Pmod
Suggested Programming Environment -
Note -
Base Product Number LPC55S69
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8471.50.0150
Win Source Part Number 1366675-LPC55S69-EVK
Ultra Librarian 3D Model Ultra Librarian LPC55S69-EVK CAD Model

Description

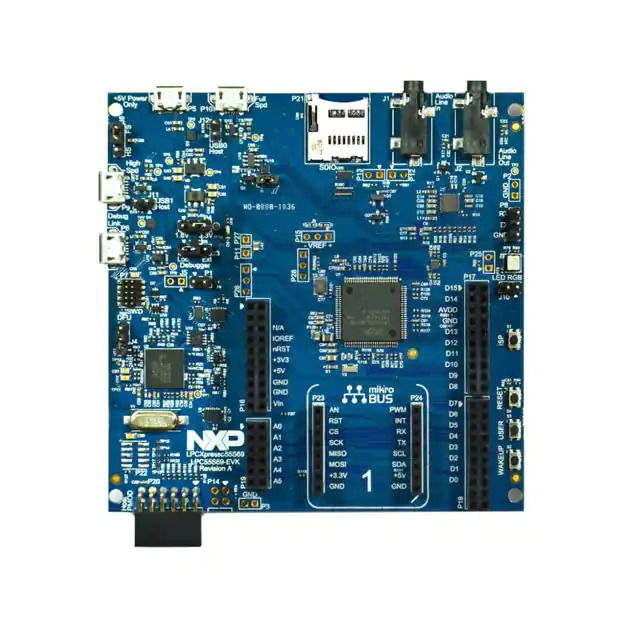

The LPC55S69-EVK from NXP Semiconductors is a versatile evaluation kit designed for the LPC55S69 microcontroller, which is part of the power-efficient LPC5500 series. This kit enables engineers to develop applications ranging from simple embedded systems to more complex IoT and industrial applications, leveraging the high-performance and security features of the LPC55S69 MCU.

Key Features

  • Dual-Core Arm Cortex-M33: The LPC55S69-EVK is built around the LPC55S69 microcontroller, which features a dual-core Arm Cortex-M33 processor with a frequency of up to 150 MHz, providing ample computational power for demanding applications.
  • Advanced Security: With its root of trust and secure boot capabilities, the LPC55S69 MCU ensures secure application operation. The evaluation kit supports the development of secure applications with features such as PUF (Physically Unclonable Function), AES encryption, and secure debug.
  • Rich Connectivity: The evaluation kit offers a variety of connectivity options, including high-speed USB, CAN, and a host of serial interfaces, enabling easy integration with peripherals and IoT ecosystems.
  • Onboard Debug Probe: The LPC55S69-EVK comes with an onboard debug probe, simplifying the debugging process and eliminating the need for external tools.
  • Flexible Memory Options: The evaluation board includes onboard NOR Flash, along with an SD card interface, allowing developers to explore a range of memory configurations and storage solutions.
  • Comprehensive Software Support: NXP offers a full suite of software tools and examples, including SDKs and middleware, to accelerate development and reduce time to market.

Applications

The LPC55S69-EVK is ideal for applications that require robust security features, efficient processing, and versatile connectivity. It is well-suited for IoT devices, edge computing, industrial control, and a wide range of embedded applications.

Package Contents

The LPC55S69-EVK evaluation kit includes the LPC55S69 evaluation board, a USB cable for power and communication, and quick start guides to help users get up and running quickly. Additional resources, including software tools, application notes, and design resources, are available on the NXP website.
