Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 35 Weeks
Features EEPROM Memory IC 8Kb (1K x 8) SPI 20 MHz 8-UFDFPN (2x3)
Manufacturer STMicroelectronics
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 8-UFDFN Exposed Pad
Case / Package 8-UFDFPN (2x3)
Family Name M95080
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0051
Other Part Number 497-15769-1, 497-15769-2, 497-15769-6, M95080-RMC6TG-ND
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 880827-M95080-RMC6TG
Ultra Librarian 3D Model Ultra Librarian M95080-RMC6TG CAD Model

Description

The M95080-RMC6TG from STMicroelectronics is a robust and reliable EEPROM (Electrically Erasable Programmable Read-Only Memory) device, designed for storing small amounts of data that must be saved when power is removed. This particular model is part of the M95xxx series, which are known for their high performance and stability in a wide range of applications and environments.

Key Features

  • Memory Size: The M95080-RMC6TG offers 8 Kbits of memory, providing ample space for configuration parameters, serial numbers, calibration data, and small application logs.
  • Interface: It utilizes a SPI (Serial Peripheral Interface) bus, ensuring high-speed data transfer between the EEPROM and the host controller.
  • Operating Voltage: The device supports a supply voltage range of 1.8V to 5.5V, making it versatile for various circuit designs and compatible with both low-power and standard logic levels.
  • Write Cycle Time: It features a fast write cycle time, with the capability to write data in small blocks, which is essential for efficient non-volatile data storage.
  • Temperature Range: The EEPROM can operate across a wide temperature range, typically from -40°C to +85°C, ensuring reliability and performance under extreme conditions.

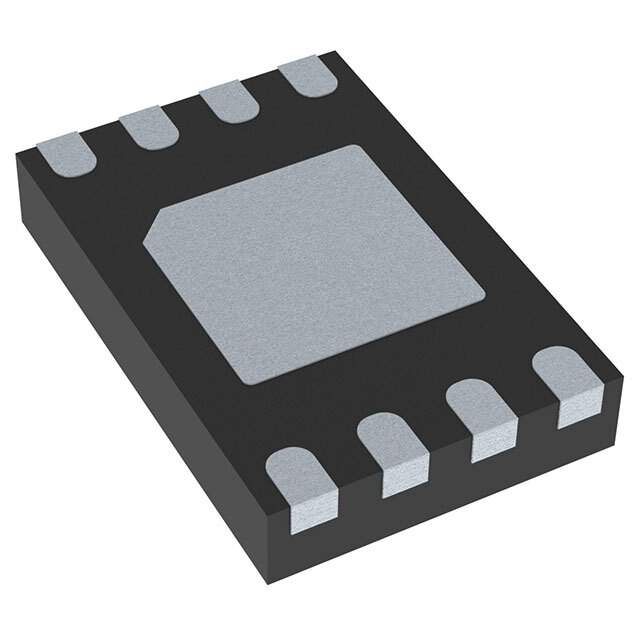

  • Package: Housed in an 8-pin UFDFPN package, the M95080-RMC6TG is compact and suitable for space-constrained applications.

Applications

The M95080-RMC6TG is versatile and can be used in a variety of applications, including:

  • Consumer Electronics
  • Industrial Automation
  • Automotive Systems
  • Medical Devices
  • Smart Metering

Conclusion

With its combination of features, the M95080-RMC6TG EEPROM from STMicroelectronics is an excellent choice for designers who require a reliable and flexible non-volatile memory solution. Its compatibility with a broad range of voltages and temperatures, along with its convenient SPI interface, makes it well-suited for a wide array of products and applications.
