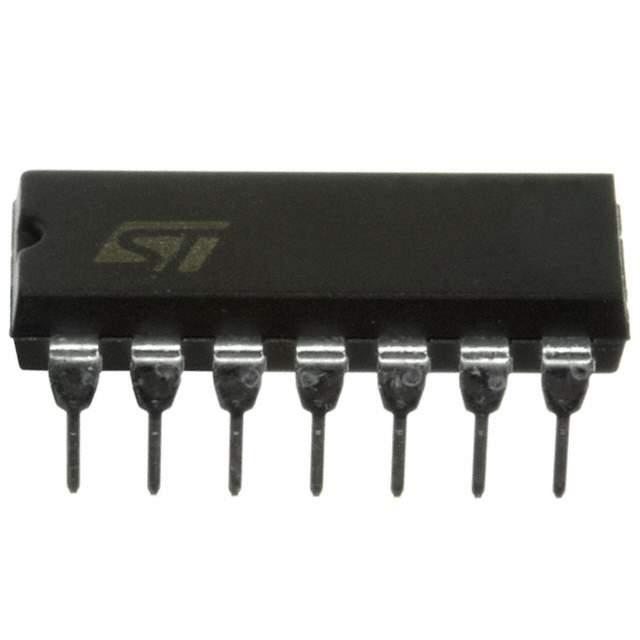

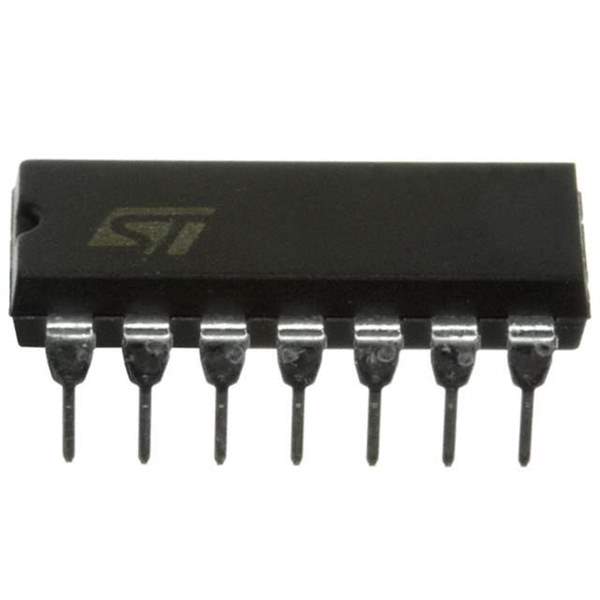

The M74HC4016B1R is a high-speed CMOS QUAD BILATERAL SWITCH manufactured by STMicroelectronics, designed for application in multiplexing, signal gating, chopping, modulating or demodulating (modem), and signal inversion without signal distortion. This integrated circuit is part of the HC (High-speed CMOS) family, which ensures a balance between speed and power consumption, making it suitable for a wide range of digital applications.

Key Features

• Wide Operating Voltage Range: The device operates on a wide voltage range from 2V to 6V, which allows for use in various systems without the need for level translation.
• Low Power Consumption: Its low power consumption makes it ideal for battery-operated and low-power systems.
• High Speed: The M74HC4016B1R provides high-speed performance with a typical switching time of only a few nanoseconds, ensuring rapid signal processing.
• Bidirectional Switches: Four independent switches capable of controlling both analog and digital signals allow for bidirectional data flow, adding versatility to its applications.
• Low "ON" Resistance: Characterized by a low ON resistance, the device ensures minimal signal attenuation when the switch is closed.
• Matched Switch Characteristics: The M74HC4016B1R has matched switch characteristics, meaning that the ON resistance is nearly identical for all switches, which is crucial for maintaining signal integrity.
• Wide Analog Input Voltage Range: The switch can handle a wide range of analog input voltages, which is particularly useful for analog signal processing.

Applications

The versatility of the M74HC4016B1R makes it suitable for a diverse set of applications. It is commonly used in:

• Analog and digital multiplexing/demultiplexing
• Signal gating
• Modem – modulating/demodulating
• Choppers and commutators
• Function generators

With its robust design and high functionality, the M74HC4016B1R from STMicroelectronics is a reliable choice for designers looking to incorporate a high-performance quad bilateral switch into their electronic designs.
