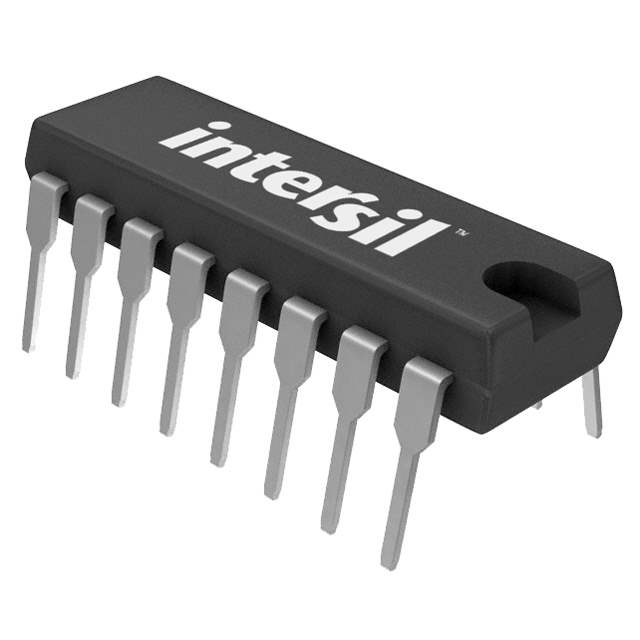

DG211CJZ Real Image
Same model may have multiple batches, images only for reference.

DG211CJZ

Part No DG211CJZ
Manufacturer Renesas Electronics America
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SPST-NCX4 175OHM 16DIP
Datasheet
DG211CJZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Renesas Electronics America
Package Tube
Product Status Obsolete
Switch Circuit SPST - NC
Number of Circuits 4
On-State Resistance (Max) 175Ohm
Voltage - Supply, Dual (V±) ±15V
Switch Time (Ton, Toff) (Max) 460ns, 450ns
Channel Capacitance (CS(off), CD(off)) 5pF, 5pF
Current - Leakage (IS(off)) (Max) 5nA
Crosstalk -90dB @ 100kHz
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Through Hole
Package / Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-PDIP
Base Product Number DG211
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 584677-DG211CJZ
Ultra Librarian 3D Model Ultra Librarian DG211CJZ CAD Model

Description

The DG211CJZ is a 4-channel analog switch from Renesas Electronics America. It is designed for use in integrated circuits for interface applications.

  • Manufacturer: Renesas Electronics America
  • Channels: 4
  • Switch Circuit: SPST-NC
  • Maximum On-State Resistance: 175Ohm
  • Crosstalk: -90dB @ 100kHz
  • Supply Voltage: ±15V
  • Switch Time (Ton, Toff): 460ns, 450ns
  • Package: 16-DIP
  • Mounting Type: Through-Hole
  • Temperature Range: 0°C to 70°C
  • Status: Obsolete
