STMicroelectronics M48Z12-70PC1 Zero Power SRAM

The M48Z12-70PC1 is a pioneering piece of technology designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This product is a 16 Kbit (2K x 8) Zero Power SRAM, which incorporates power-saving features that make it ideal for a wide range of applications where low power consumption and data integrity are crucial.

Key Features

• Memory Size: The M48Z12-70PC1 offers a memory capacity of 16 Kbits, organized as 2K by 8 bits, providing sufficient space for critical data storage needs in embedded systems.
• Speed: With an access time of 70ns, this SRAM delivers fast data access, ensuring high-performance operation for systems that require quick memory retrieval.
• Integrated Battery: The device includes a factory-installed battery that powers the RAM in the event of a power failure, ensuring data preservation without external power for over 10 years.
• Low Power Consumption: The Zero Power technology employed in the M48Z12-70PC1 allows for extremely low power consumption when in battery-backup mode, making it an energy-efficient choice.

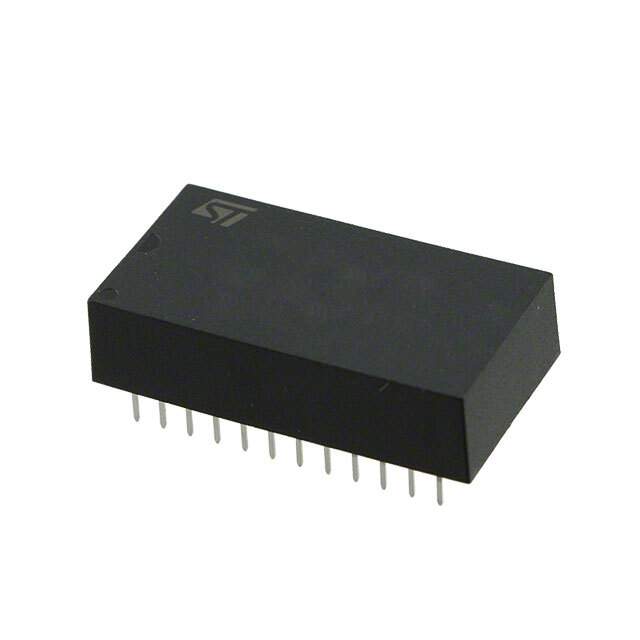

• Package: Encased in a 28-pin, 600 mil DIP CAPHAT™ package, the M48Z12-70PC1 is designed for easy integration into a variety of circuit boards and systems.

Applications

The M48Z12-70PC1 is versatile and can be used in a multitude of applications, including:

• Utility meters
• Security systems
• Industrial and automotive electronics
• Portable instrumentation
• Medical devices

Reliability and Data Retention

The reliability of the M48Z12-70PC1 is underscored by its ability to retain data for over 10 years in the absence of power. This feature is essential for applications that require long-term data integrity without the need for constant power supply or frequent battery replacement.

Environmental and Quality Standards

STMicroelectronics is committed to environmental sustainability and quality. The M48Z12-70PC1 is designed to comply with the rigorous standards set by the industry, ensuring both performance and reliability while minimizing environmental impact.

In summary, the M48Z12-70PC1 from STMicroelectronics is a robust, low-power SRAM solution that offers reliable data storage with the added security of an integrated battery backup. Its fast access time and adherence to quality standards make it an excellent choice for a wide range of applications where data integrity is paramount.
