Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Packaging Tube
Part Status Obsolete(EOL)
Memory Type Non-Volatile
Memory Format EPROM
Technology EPROM - UV
Memory Size 256Kb (32K x 8)
Access Time 70ns
Memory Interface Parallel
Operating Supply Voltage 4.75 V ~ 5.25 V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting Style Through Hole

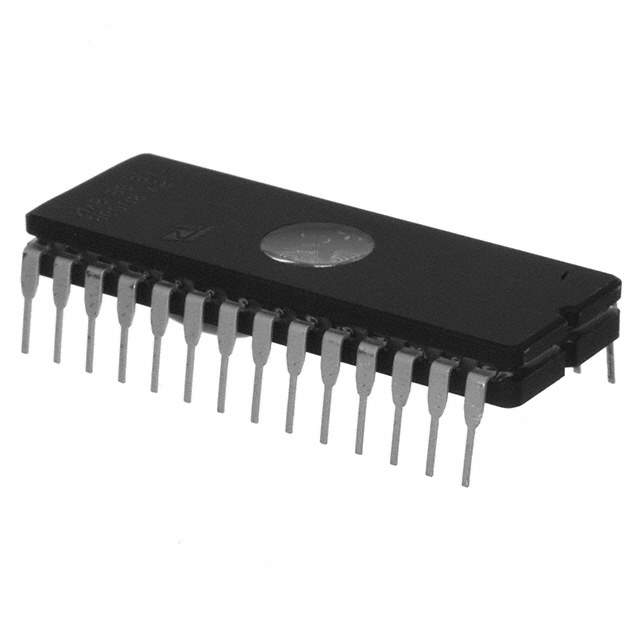

Package 28-CDIP (0.600", 15.24mm) Window
Manufacturer Package 28-CDIP Frit Seal with Window
Win Source Part Number 784904-M27C256B-70XF1
Popularity Medium
Supply and Demand Status Limited
Family Name M27C256B
Introduction Date July 01, 1998
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian M27C256B-70XF1 CAD Model

Description

Product Overview: M27C256B-70XF1

The M27C256B-70XF1 is a high-speed 256 Kbit EPROM (Erasable Programmable Read-Only Memory) chip manufactured by STMicroelectronics. This integrated circuit is designed for applications that require fast access times and a reliable storage solution for firmware or software code. It is particularly well-suited for use in embedded systems, telecommunications, computing, and industrial applications where longevity and performance are critical.

Key Features

  • Memory Capacity: 256 Kbits (32K x 8)
  • Access Time: 70ns, providing swift data retrieval for high-speed operations.
  • Programming Voltage: 12.5V, facilitating easy integration with a range of programming equipment.
  • Package: The M27C256B-70XF1 comes in a Ceramic Flat Pack (CFP) package, ensuring robustness and reliability in harsh environments.
  • Temperature Range: Suitable for industrial temperature ranges, maintaining stable operation under varying conditions.
  • Single 5V Power Supply: Simplifies power management within the system.
  • Low Power Consumption: Features standby and active modes for energy efficiency.
  • UV Erasable: The windowed package allows for easy erasure with ultraviolet light, enabling multiple reuses of the EPROM.

Applications

The versatility of the M27C256B-70XF1 EPROM makes it an excellent choice for a wide array of applications, including:

  • Embedded systems requiring a stable non-volatile memory solution.
  • Storage of boot code in computers and industrial machinery.
  • Telecommunication systems where firmware may need to be updated or changed.
  • High-endurance applications in automotive and aerospace industries.
  • Legacy systems where EPROM technology is still in use.

Reliability and Quality Assurance

STMicroelectronics is committed to delivering high-quality products. The M27C256B-70XF1 EPROM undergoes rigorous testing and quality control processes to ensure it meets the industry standards for reliability and performance. Customers can rely on this EPROM to maintain data integrity and provide a dependable storage solution for their critical applications.

For detailed technical specifications, application notes, and programming information, customers are encouraged to refer to the official datasheet provided by STMicroelectronics for the M27C256B-70XF1.
