The LM2903YQ3T from STMicroelectronics is a high-quality, dual differential comparator designed to provide a precise voltage comparison solution for a wide range of electronic applications. This device is a part of the LMx93 and LM2903 series, which are known for their reliability and performance in various control systems and signal processing tasks.
Key Features
- Wide Supply Voltage Range: The LM2903YQ3T operates from a single power supply over a wide range of voltages, from 2V to 36V, or from dual supplies of ±1V to ±18V, making it versatile for both low and high voltage applications.
- Low Input Bias Current: The device boasts a low input bias current, which minimizes the effect on the input signal and ensures accurate comparisons.
- Low Input Offset Voltage: It also features a low input offset voltage, further enhancing its precision and making it suitable for applications requiring tight voltage thresholds.
- High Gain: With its high gain, the LM2903YQ3T provides a quick and reliable response to input voltage changes, which is critical for control and regulation systems.
- Output Compatibility: The open collector of the output stage allows for wired-AND connections and compatibility with various types of logic systems.
Applications
The LM2903YQ3T is used in a multitude of electronic circuits and can be found in:
- Industrial control systems
- Limit comparators
- Time-delay generators
- Window comparators
- Voltage monitoring
- Battery chargers
- Consumer electronics
- Automotive applications
Package and Quality

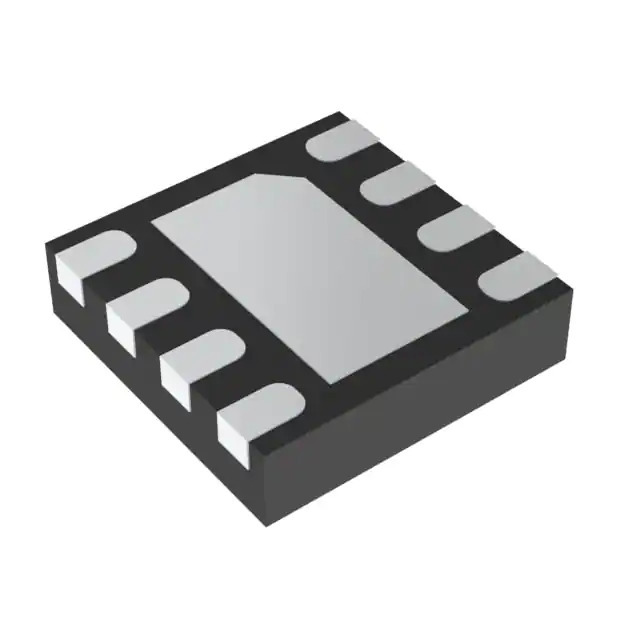

The LM2903YQ3T is available in a small, surface-mount package that is ideal for space-constrained applications. STMicroelectronics is committed to high standards of quality, and this product is no exception, meeting rigorous industry standards for performance and reliability.
With its combination of features, the LM2903YQ3T is a solid choice for designers looking for a dependable comparator that can operate across a broad range of conditions while offering consistent performance.
