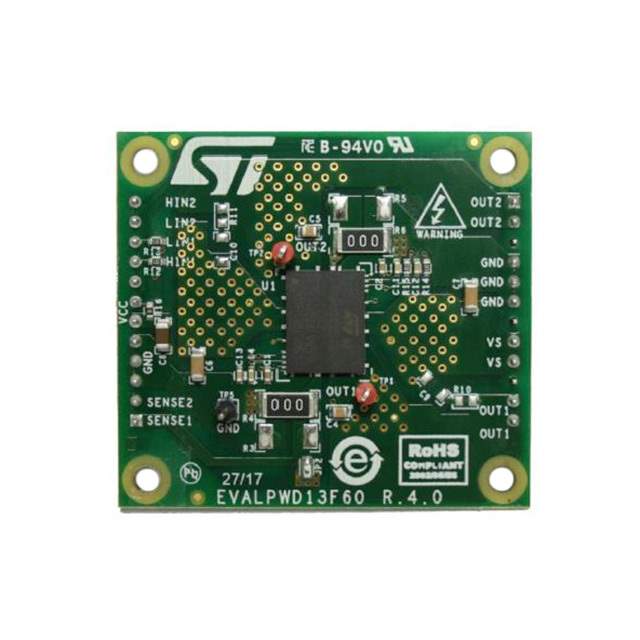

EVALPWD13F60 - PowerSTEP01 Evaluation Board

The EVALPWD13F60 from STMicroelectronics is a state-of-the-art evaluation board designed for the PowerSTEP01, a fully integrated motor driver that is capable of driving motors with up to 85V and 10A. This evaluation board is an excellent tool for designers and engineers looking to explore the capabilities of the PowerSTEP01 in driving stepper motors, particularly in applications requiring high precision and efficiency such as 3D printers, textile machines, office automation, and industrial automation systems.

The evaluation board comes equipped with a variety of features that make it a versatile and user-friendly platform for motor control experiments and prototyping. The on-board PowerSTEP01 integrates a dual full-bridge gate driver, which can drive a two-phase bipolar stepper motor using different driving modes including full-step, half-step, quarter-step, and even microstepping up to 1/128 of a step. This allows for smooth and precise motor control, essential for applications where accuracy is critical.

One of the standout features of the EVALPWD13F60 is its ability to support advanced motion profiles with speed and acceleration control, thanks to the built-in programmable speed profile generator. This makes it easier for developers to implement complex motion sequences without the need for an external microcontroller. Additionally, the board includes overcurrent, overtemperature, and short-circuit protection, enhancing the safety and reliability of motor operation.

The evaluation board can be controlled via an SPI interface, allowing for easy configuration and tuning of the device parameters. It also includes LED indicators for visual feedback on the motor control status and power stage condition. For further convenience, the EVALPWD13F60 is compatible with the ST's motor control software development kit (SDK), which provides a comprehensive set of tools for developing and debugging motor control applications.

Whether for rapid prototyping or in-depth evaluation of the PowerSTEP01 capabilities, the EVALPWD13F60 evaluation board is a powerful asset for any development team working on stepper motor control solutions.
