EVAL6235N - STMicroelectronics' Motor Driver Evaluation Board

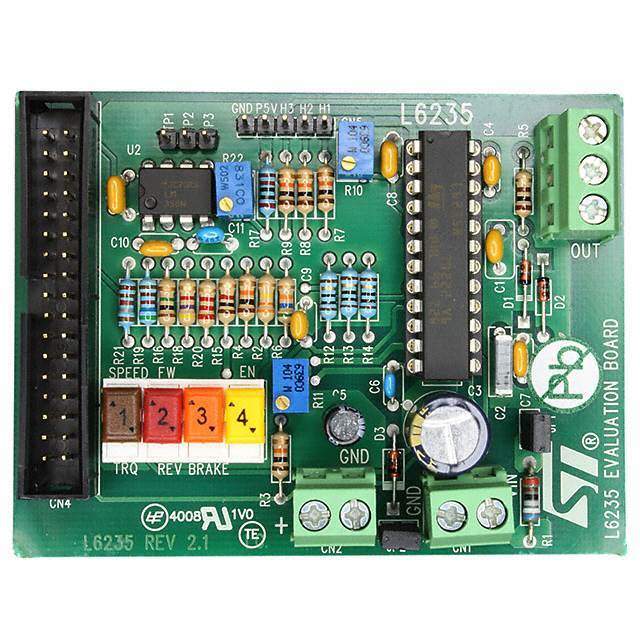

The EVAL6235N is a high-performance evaluation board from STMicroelectronics, designed for those seeking to evaluate and prototype applications using the L6235N three-phase brushless DC motor driver. This compact and versatile board is an ideal solution for a wide range of motor control applications, including fans, pumps, and robotics, where precision and reliability are paramount.

At the heart of the EVAL6235N lies the L6235N IC, which integrates a triple half-bridge driver capable of driving up to 2.8A (peak) while operating within a voltage range of 8V to 52V. This makes it suitable for a variety of power requirements. The IC's inherent features include non-dissipative overcurrent protection and thermal shutdown, ensuring the longevity and safety of both the motor and the controller.

The evaluation board comes equipped with all the necessary external components, including power MOSFETs, bootstrap diodes, and an array of capacitors and resistors. This integration facilitates immediate testing and development, reducing time-to-market for products in development. Furthermore, the board's user-friendly layout includes accessible test points and connectors, providing developers with an easy interface for monitoring and controlling motor operation.

The EVAL6235N also supports Hall-sensor-based commutation as well as sensorless operation, providing flexibility for different motor control strategies. Users can leverage the board's potentiometer to adjust motor speed and direction effortlessly, which is essential for dynamic testing scenarios.

For developers looking to customize their motor control systems, the EVAL6235N offers a robust platform with the ability to interface with STMicroelectronics' extensive range of microcontrollers. This compatibility ensures that designers can create sophisticated and integrated solutions using ST's ecosystem of hardware and software tools.

In summary, the EVAL6235N from STMicroelectronics is a comprehensive and flexible solution for anyone looking to develop advanced motor control systems. Its combination of power, precision, and ease of use makes it an excellent choice for both prototyping and educational purposes.
