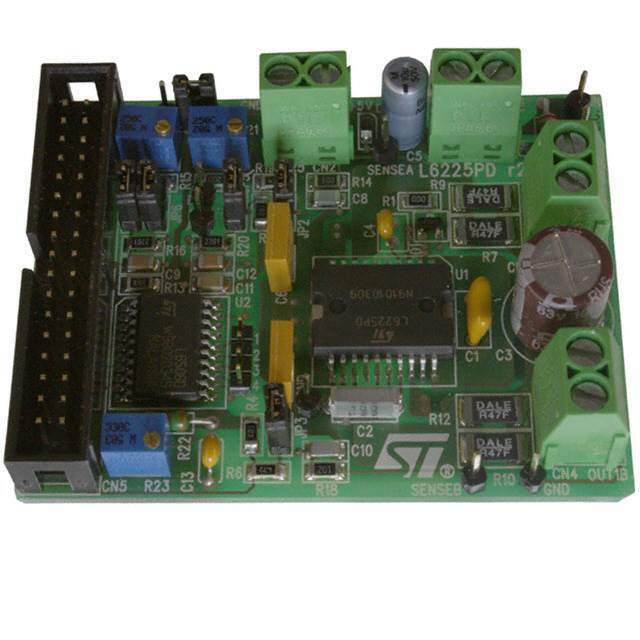

The EVAL6225PD from STMicroelectronics is a state-of-the-art evaluation board designed specifically for the L6225PD dual full-bridge driver. This evaluation board is engineered to demonstrate the capabilities of the L6225PD integrated circuit, which is optimized for driving bipolar stepper motors. It is an ideal platform for developers and engineers to assess the performance and characteristics of the L6225PD driver in various applications.

Key Features

• Integrated Dual Full-Bridge Driver: The L6225PD chip can drive two separate motors or one stepper motor, providing flexibility in application design.
• Operating Voltage Range: The board operates over a wide voltage range from 8 V to 52 V, accommodating a variety of stepper motor specifications and ensuring compatibility with different power supplies.
• Peak Output Current: Capable of delivering up to 2.8 A of peak output current per channel, it is suitable for a range of demanding applications.
• Thermal Overload Protection: The L6225PD includes thermal shutdown and overcurrent protection, enhancing the reliability and longevity of the evaluation board and the motor.
• Non-Dissipative Overcurrent Detection: This feature helps prevent damage to the board and motor by detecting overcurrent conditions without the need for energy dissipation.
• Cross-Conduction Protection: Safety feature that prevents simultaneous high-side and low-side conduction, which could lead to short circuits and damage.

Applications

The EVAL6225PD evaluation board is suitable for a wide range of applications where precise control of stepper motors is required. This includes but is not limited to robotic systems, CNC machines, automated assembly lines, and 3D printers. Its robust design and advanced features make it an excellent tool for both rapid prototyping and in-depth analysis of stepper motor control solutions.

Additional Information

The EVAL6225PD comes with comprehensive documentation that includes a detailed user manual, application notes, and datasheets, providing all the necessary information to get started quickly. Additionally, STMicroelectronics offers software tools and support to assist with the development and testing process.
