Introducing the EV-VND5E050J Evaluation Board from STMicroelectronics

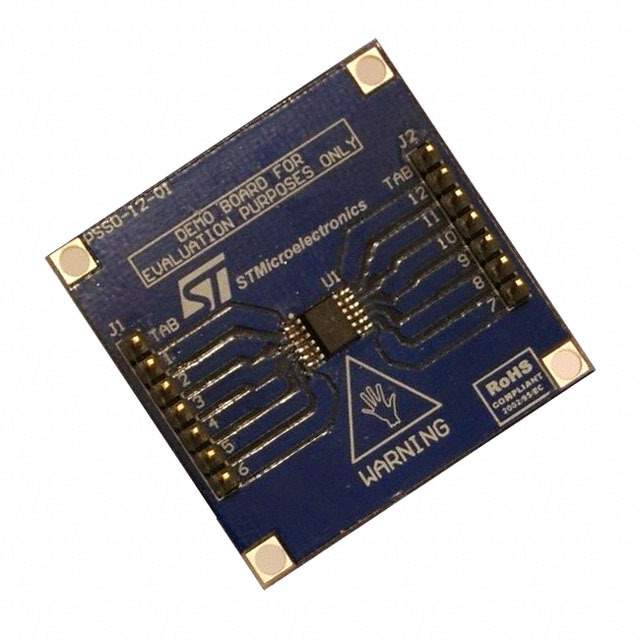

The EV-VND5E050J is a state-of-the-art evaluation board designed by STMicroelectronics to showcase the capabilities of the VND5E050J Double Channel High-Side Driver. This evaluation board is an excellent tool for engineers and developers who want to test the functionalities of the VND5E050J integrated circuit in a real-world application or prototype.

Key Features of the EV-VND5E050J

• Double Channel High-Side Driver: The VND5E050J chip on the board is a robust high-side driver capable of driving two independent loads. This feature allows for the direct control of two separate high-power loads, making it ideal for automotive and industrial applications.
• Wide Voltage Range: The board operates over a wide voltage range from 5.5V to 36V, providing flexibility in various operating conditions and ensuring compatibility with a range of automotive batteries and industrial power supplies.
• Current Monitoring: With built-in current sensing, the EV-VND5E050J allows for real-time monitoring of the load current, which is crucial for system diagnostics and protection.
• Thermal Shutdown: The evaluation board includes a thermal shutdown feature to protect against overheating, ensuring the longevity and reliability of the system under test.
• Load Dump Protection: The board is equipped with load dump voltage surge protection, safeguarding the electronics against transients that may occur in an automotive power environment.

Applications

The EV-VND5E050J evaluation board is suitable for a wide array of applications, particularly in the automotive sector. It can be used in the development of headlight control modules, fan controllers, and other automotive systems that require high-side load driving. Additionally, it is well-suited for industrial applications where robust and reliable high-side switching is necessary.

Easy Integration

Designed with ease of integration in mind, the EV-VND5E050J comes with all the necessary interfaces for quick connection to a microcontroller or other control circuitry. The evaluation board's compact form factor and comprehensive documentation provided by STMicroelectronics ensure a smooth and straightforward development process.

Whether you're working on advanced automotive systems or designing industrial control solutions, the EV-VND5E050J evaluation board is the perfect tool to evaluate the performance and features of the VND5E050J high-side driver in a controlled and efficient manner.
