ESDALC5-4BN4 STMicroelectronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Obsolete
Type Zener
Bidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 5.5V
Voltage - Clamping (Max) @ Ipp 14.5V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 60W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 13pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount

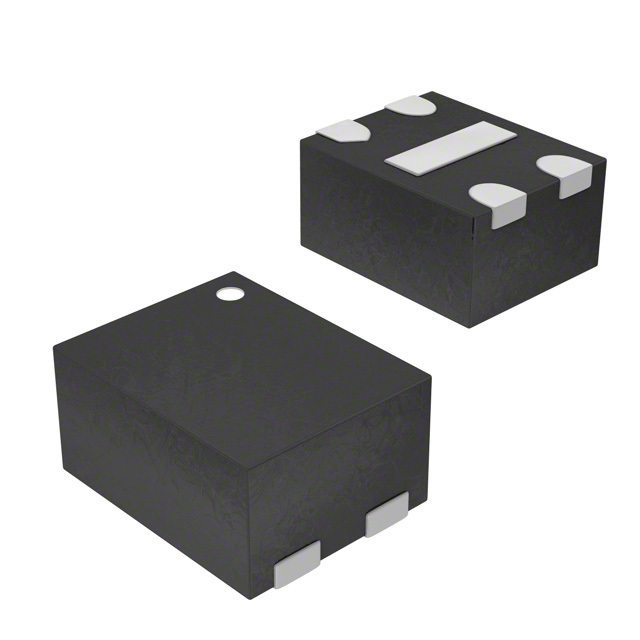

Case / Package 4-XFDFN Exposed Pad
Supplier Device Package 4-uQFN (1x0.8)
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1601930-ESDALC5-4BN4
Ultra Librarian 3D Model Ultra Librarian ESDALC5-4BN4 CAD Model
