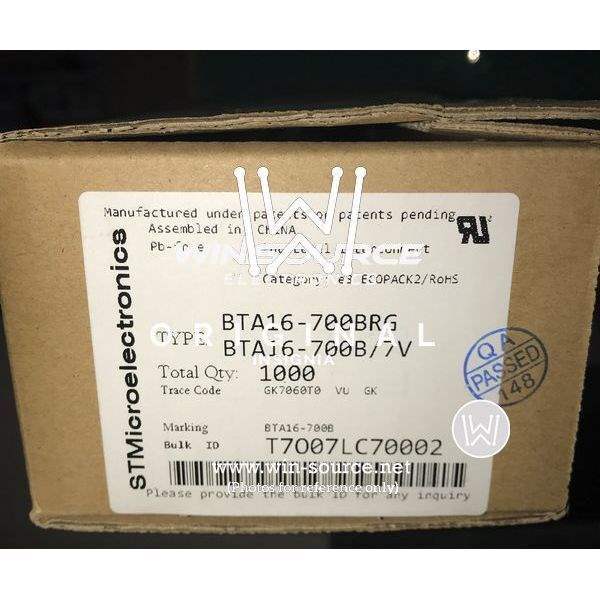

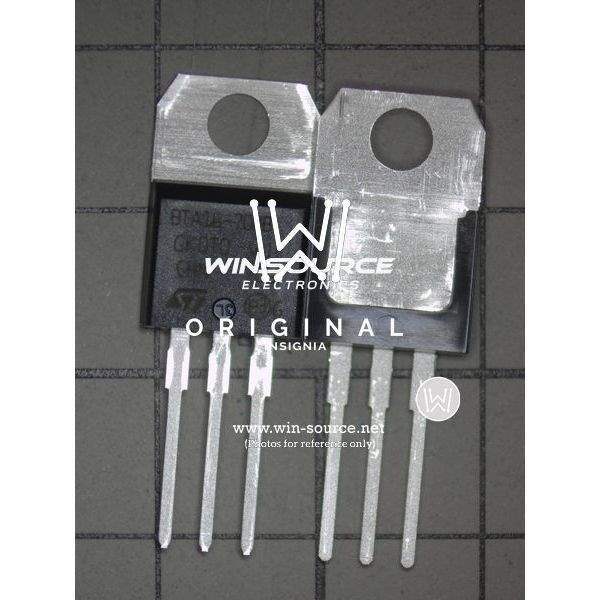

STMicroelectronics BTA16-700BRG - Triac

The BTA16-700BRG is a high-performance triac from STMicroelectronics, designed for AC power control applications. This robust semiconductor device can handle current loads of up to 16A and is capable of withstanding voltages up to 700V, making it an ideal choice for managing medium to high power AC loads.

Key Features

• Current Rating: Capable of handling continuous on-state currents up to 16A, which is suitable for a wide range of applications including home appliances, office machines, and industrial control systems.
• Repetitive Peak Off-State Voltage (Vdrm): With a 700V rating, it provides a high level of voltage withstand capability for better reliability and performance in surge-prone environments.
• Gate Trigger Voltage (Vgt): A low gate trigger voltage ensures that the triac can be easily driven by microcontrollers and other low-power gate trigger circuits.
• Snubberless Technology: This triac incorporates ST’s snubberless technology, which allows it to be used in applications without additional external snubber circuits, simplifying design and reducing component count.
• High Commutation Capability: The BTA16-700BRG has been designed to handle high commutation performances, making it suitable for applications that require frequent on/off switching.
• Package: Supplied in a robust and insulated RD-91 package, it ensures ease of installation and provides sufficient insulation for safety considerations.

Applications

The versatile BTA16-700BRG triac from STMicroelectronics is used extensively in a variety of AC power control applications, including:

• Lighting control systems
• Motor control circuits for fans, pumps, and other appliances
• Heating regulation in domestic and industrial environments
• Speed control for power tools and kitchen appliances
• AC power switching in general purpose applications

This triac is a practical choice for designers looking for a reliable, high-performance solution for controlling power in AC circuits. Its combination of high current rating, high voltage capability, and snubberless operation makes it a versatile component in the power electronics domain.
